Hengshui Yuanming Steel Structure Co., Ltd. manufactures galvanized steel substation gantry frames and lattice support structures for power transmission and distribution projects. These structures carry conductors, busbars, and associated equipment within substations, combining a lattice design with hot-dip galvanized steel for outdoor service.
The gantry frame is built as a lattice support structure rather than a solid section. Lattice members distribute loads efficiently while keeping weight and wind area low. Frames are fabricated from structural steel sections, with bracing arranged to suit the required span, height, and loading conditions of each project.
Each structure is produced to project drawings. Member sizes, connection details, and overall geometry are matched to the substation layout and the equipment the frame is designed to support.
Steel components receive a hot-dip galvanized coating to protect against corrosion in outdoor substation environments. The zinc coating covers internal and external surfaces of the members and helps extend service life with reduced maintenance compared with untreated steel.

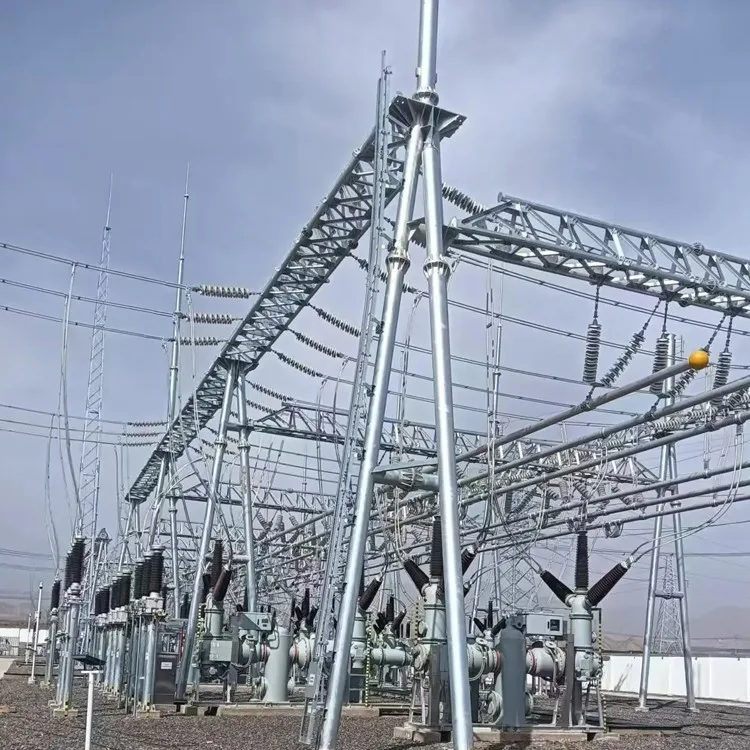

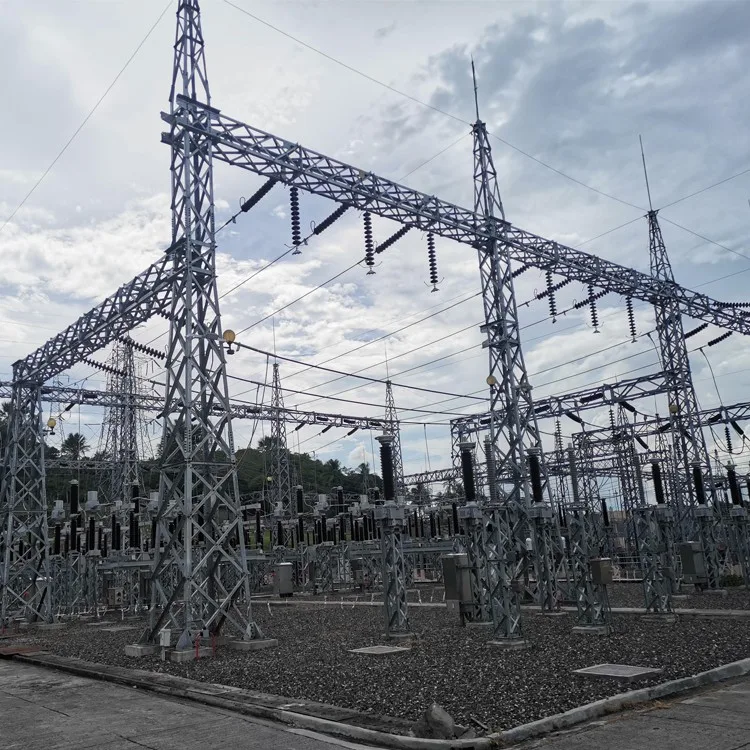

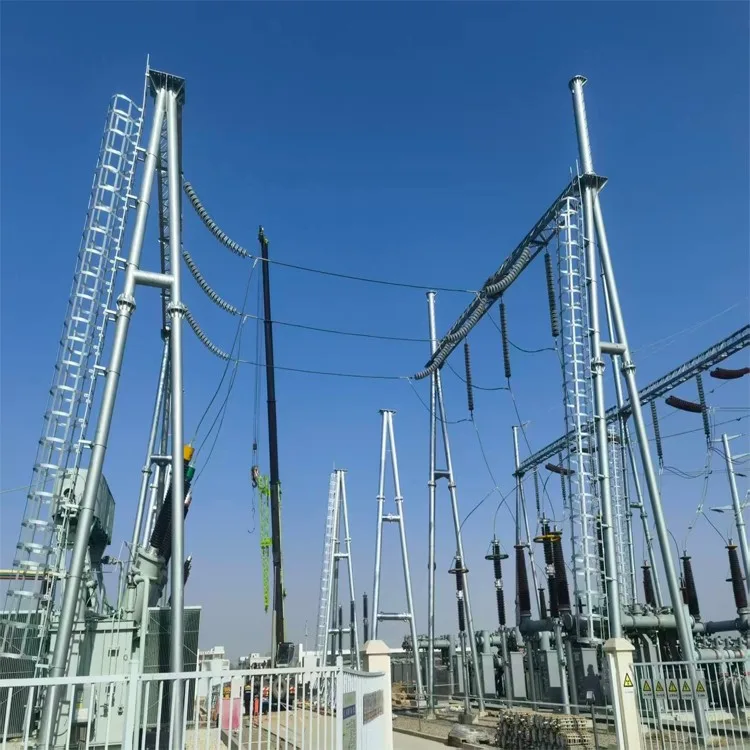

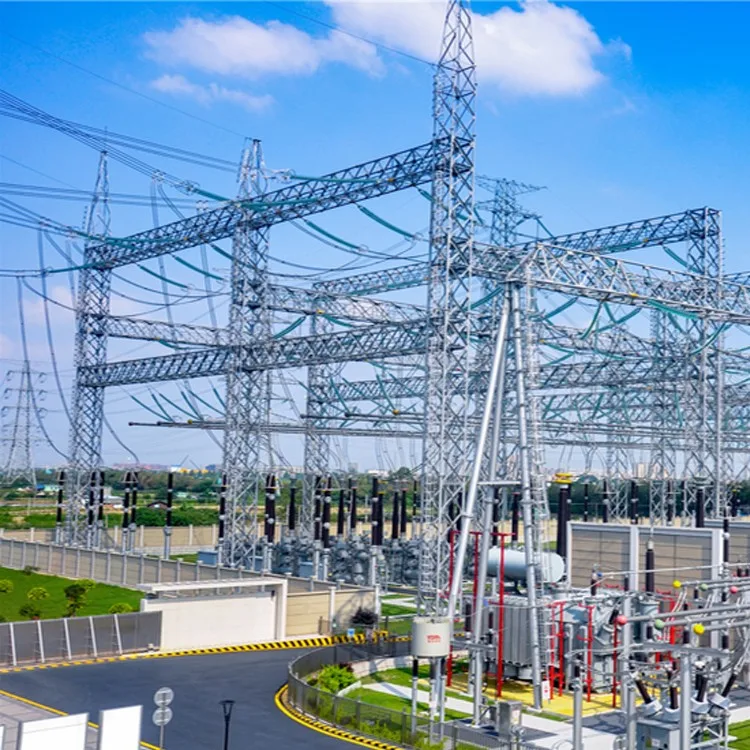

These gantry frames and lattice supports are used in substations to carry conductors and busbars, support equipment, and form the structural framework around which substation layouts are arranged. They suit new-build projects as well as replacement and expansion work where structures must match existing arrangements.

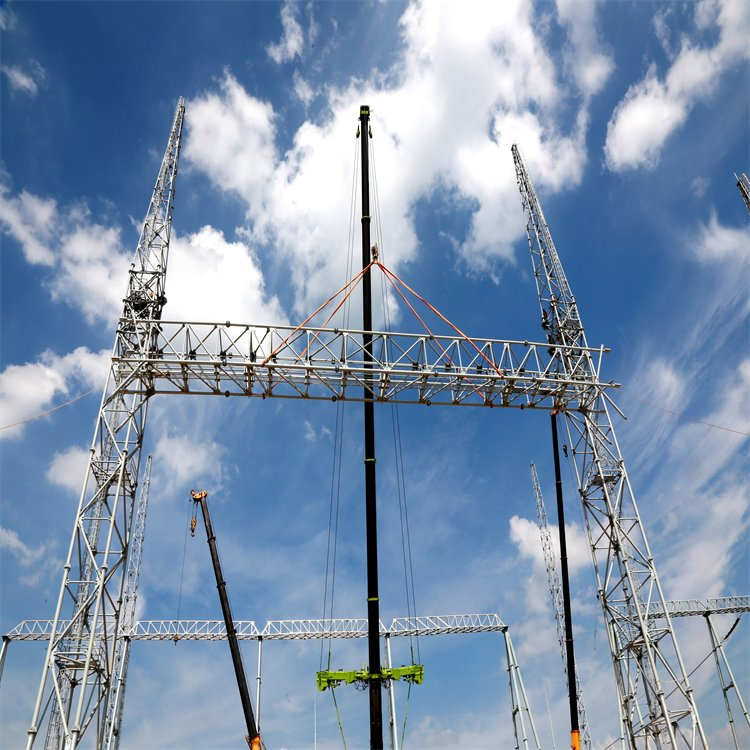

Fabrication is carried out in a controlled workshop environment, covering cutting, assembly, welding, and galvanizing. Components are produced to the dimensions and connection details specified in the project documentation, and members are prepared for transport and site erection.
Structures are made to order. To prepare a quotation, please provide project drawings or specifications, including required heights, spans, loading conditions, and any site or connection requirements. Our team will review the details and respond with the relevant technical and commercial information.
