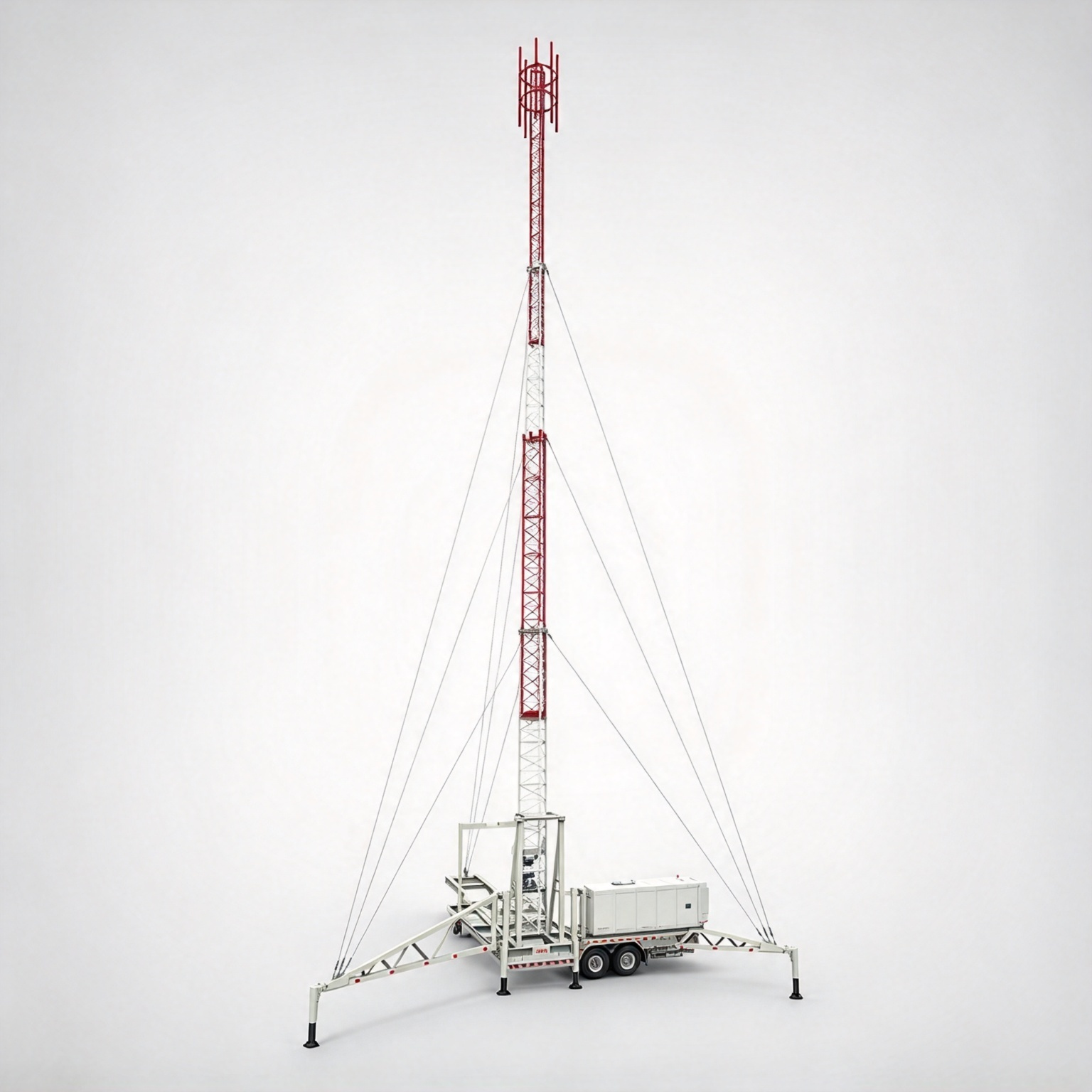

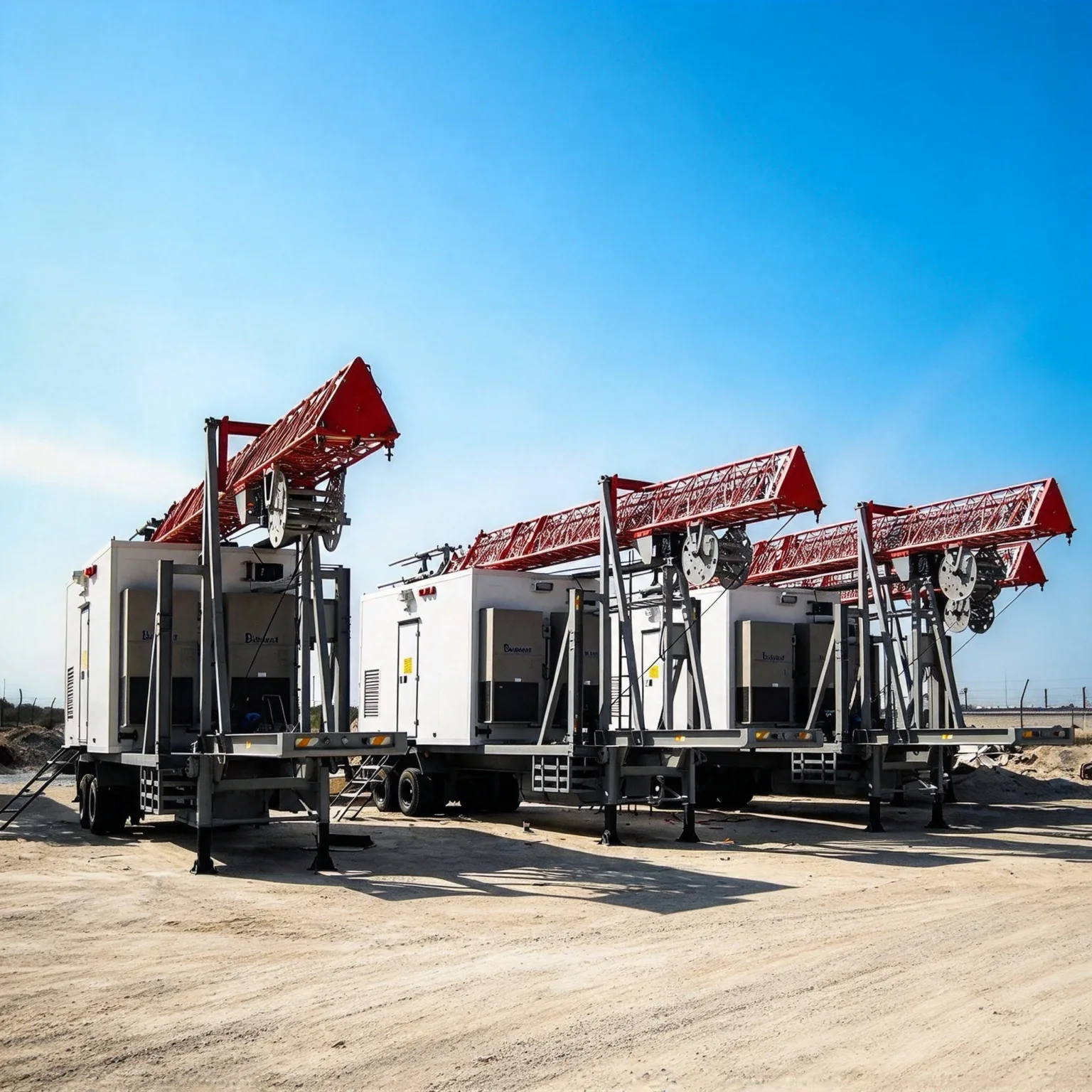

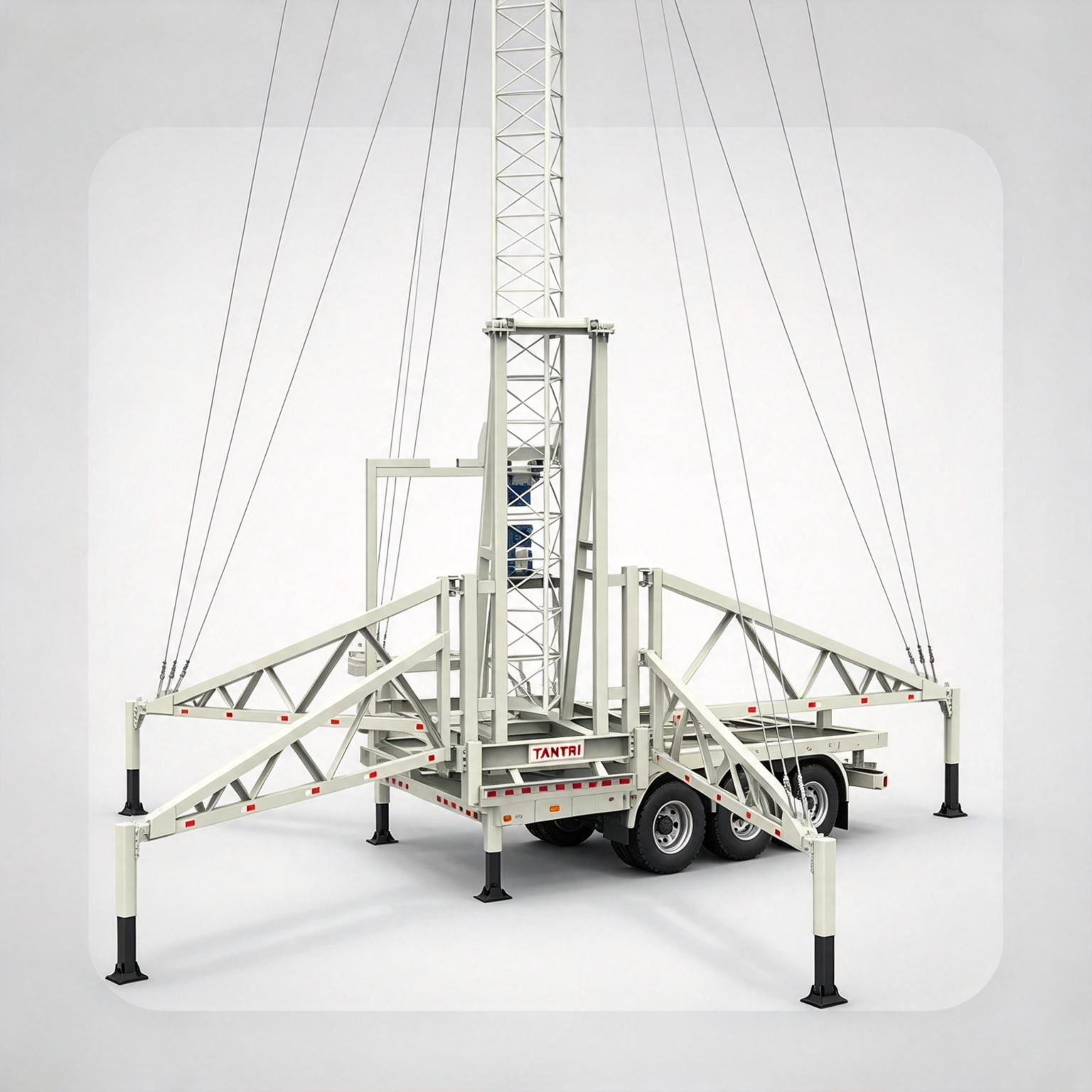

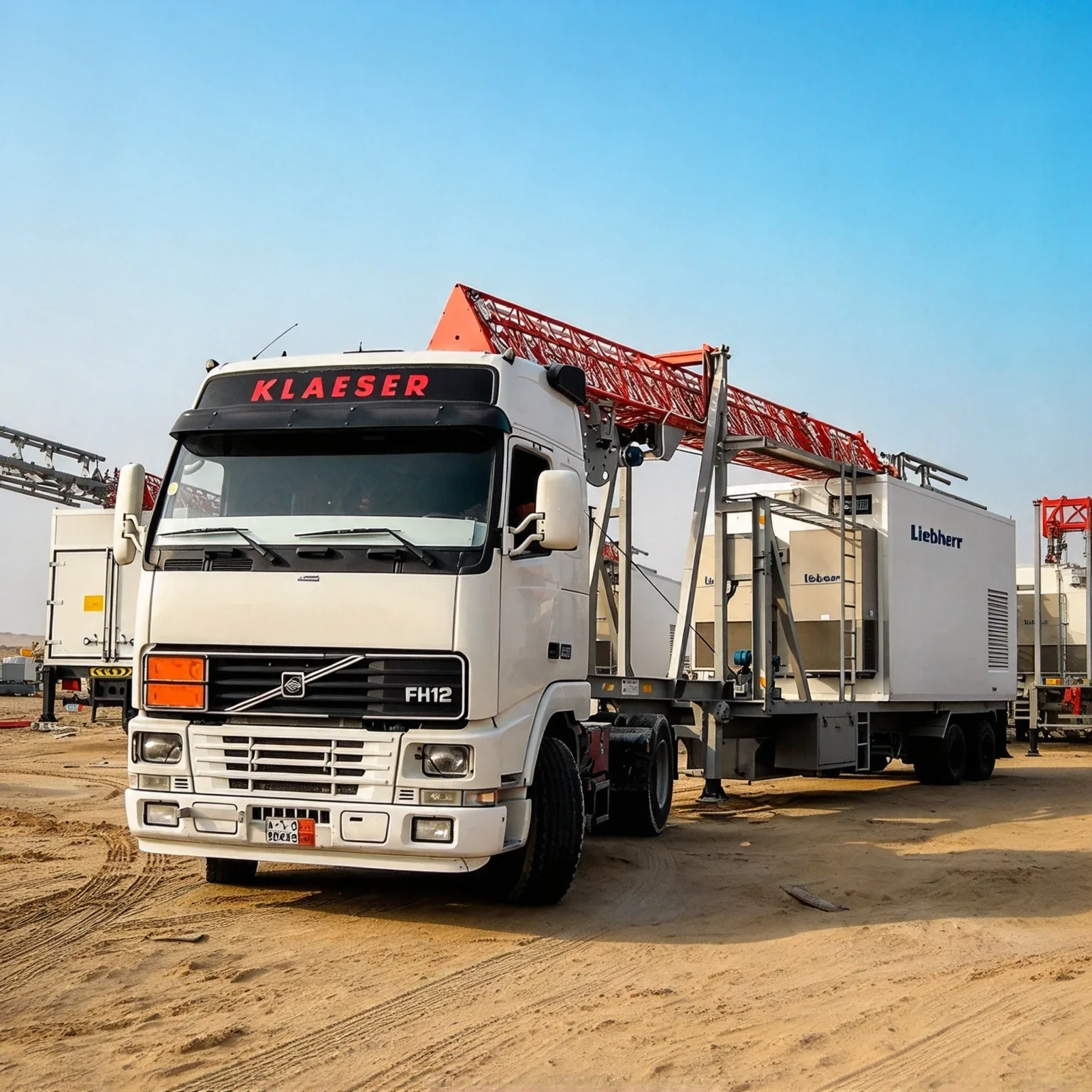

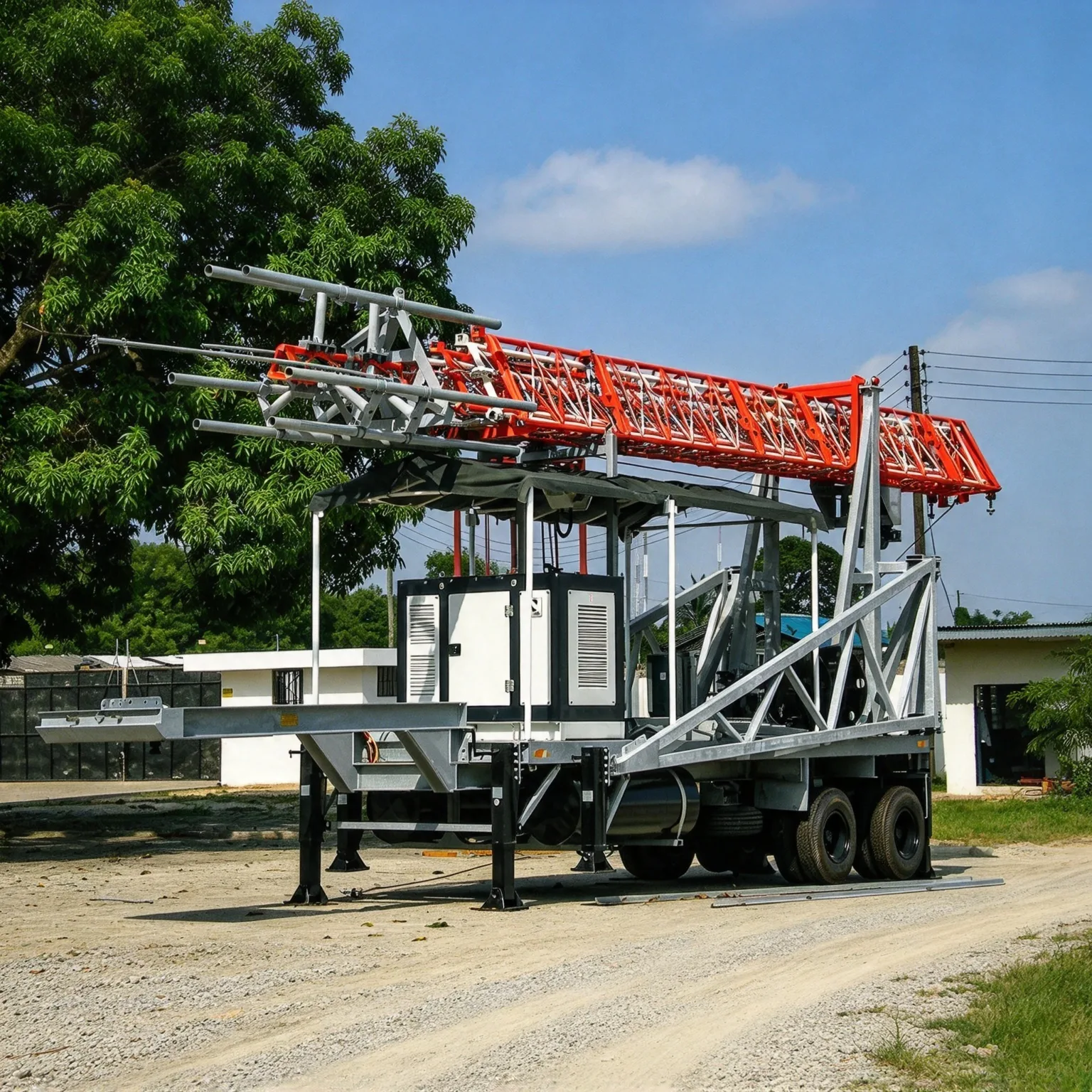

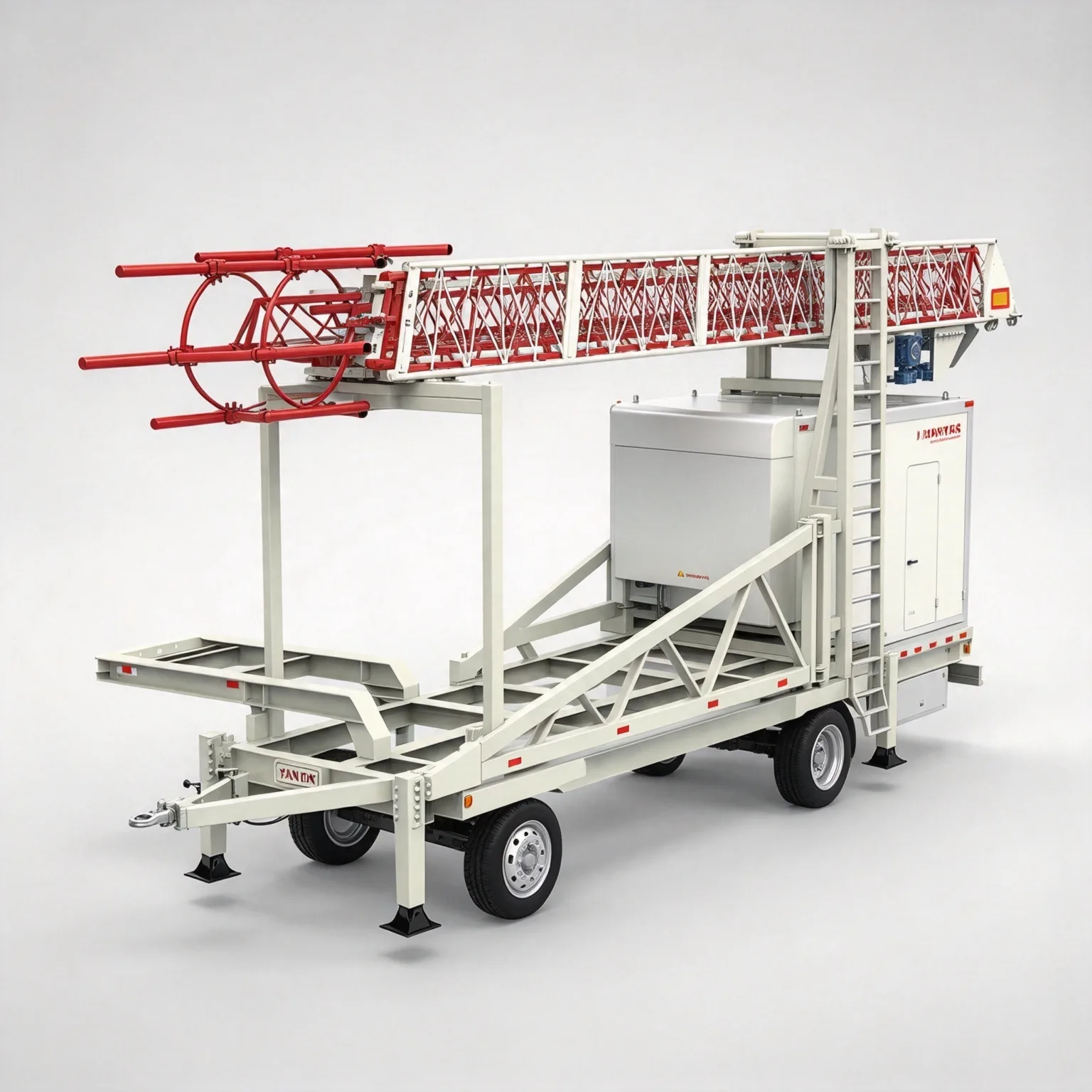

Cell on Wheels (COW) is a mobile, rapid-deployment cellular base station system mounted on a trailer. It carries telecom antennas, radio units and supporting equipment to deliver temporary cellular coverage for cell sites.
This mobile solution requires no permanent tower foundation. It can be quickly transported to target locations and put into service within a short time. The integrated steel mast is hot‑dip galvanized for reliable outdoor corrosion resistance. Custom mast height and antenna loading design are available to match coverage demands.
Ideal for emergency communication, large event temporary coverage, network capacity expansion, disaster recovery and short-term site backup for cellular networks.
To get an accurate quotation, please provide mast height, antenna payload, required coverage range and site deployment conditions. Layout drawings help confirm the overall configuration before production.
Submit your technical requirements and quantity to receive our fabrication proposal. Material certificates and past project references can be supplied upon request.
| Item | Specification |
| Design Software | MS TOWER, ASM TOWER, PLS TOWER, SAP2000, etc. |
| Wind Speed | 0–330 KM/H |
| Design Standard | TIA/EIA-222-G/F/H |
| Material | GB/T700: Q235B |
| GB/T1591: Q355B, Q355C, Q355D, Q420 | |
| ASTM A36, ASTM 572, GR50, GR65, SS400 | |
| EN 10025: S235JR, S235JO, S235JZ | |
| EN 10025: S355JR, S355JO, S355JZ | |
| Certificate | ISO9001, SGS COC |
| Galvanized | Hot-dipped Galvanized |
| Galvanization Standard | ASTM A123 |
| Nuts & Bolts | Grade 8.8，ASTM A325M Type1 (830MPa) |
| Welding Standard | AWS D1.1 |
| Welding Method | CO₂ Shielded Arc Welding; Submerged Arc Welding (SAW) |
| Bolts & Nuts Galvanization Standard | ISO 1461 or ASTM A153 |
| Supply Ability | 5,000 MT per month |
