Telecom Monopole

Telecom monopole from Hengshui Yuanming Steel Structure Co., Ltd. Durable steel structure for telecom applications. Item No. 1003.

Item No.1003

Get a Quote

Product Details

Telecom Monopole

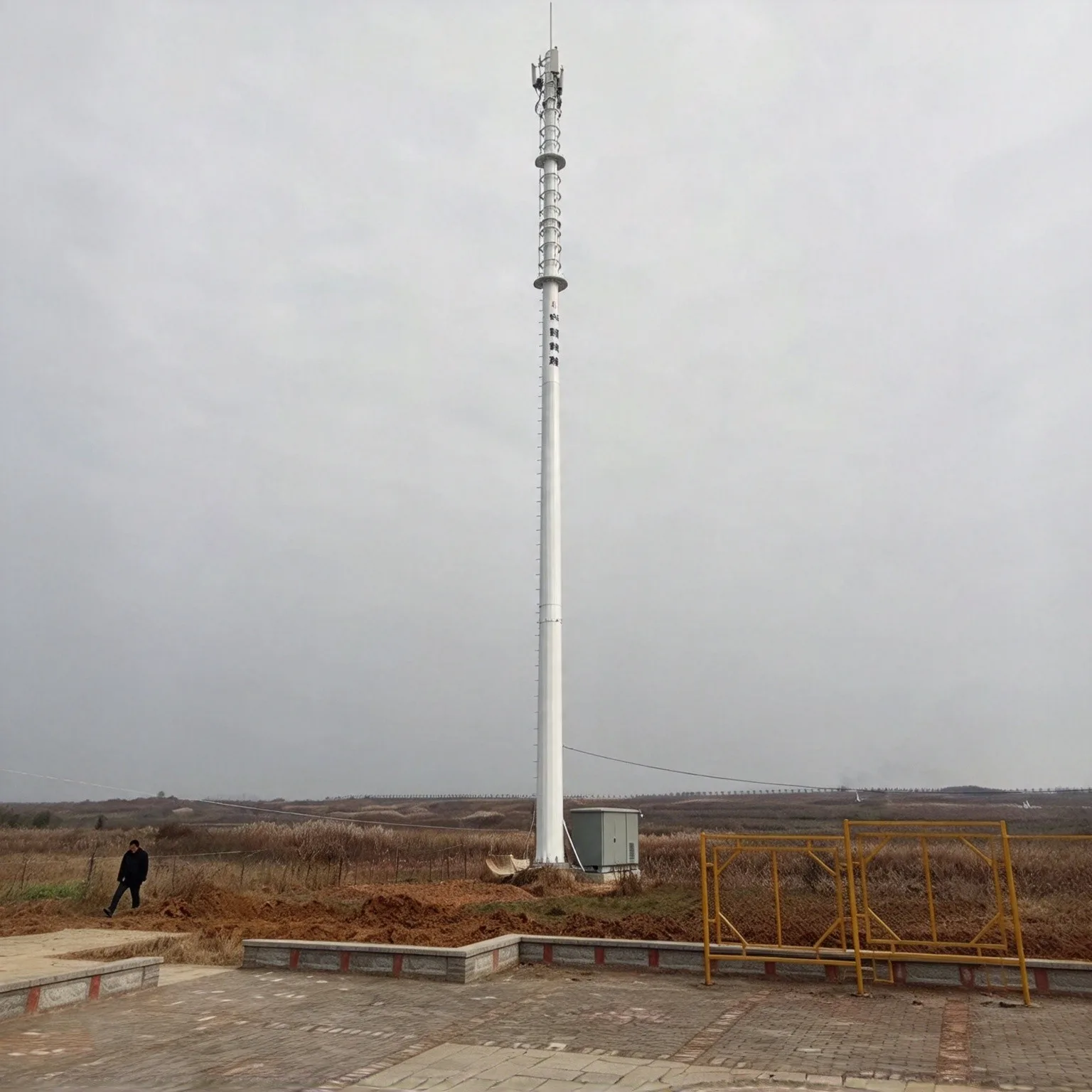

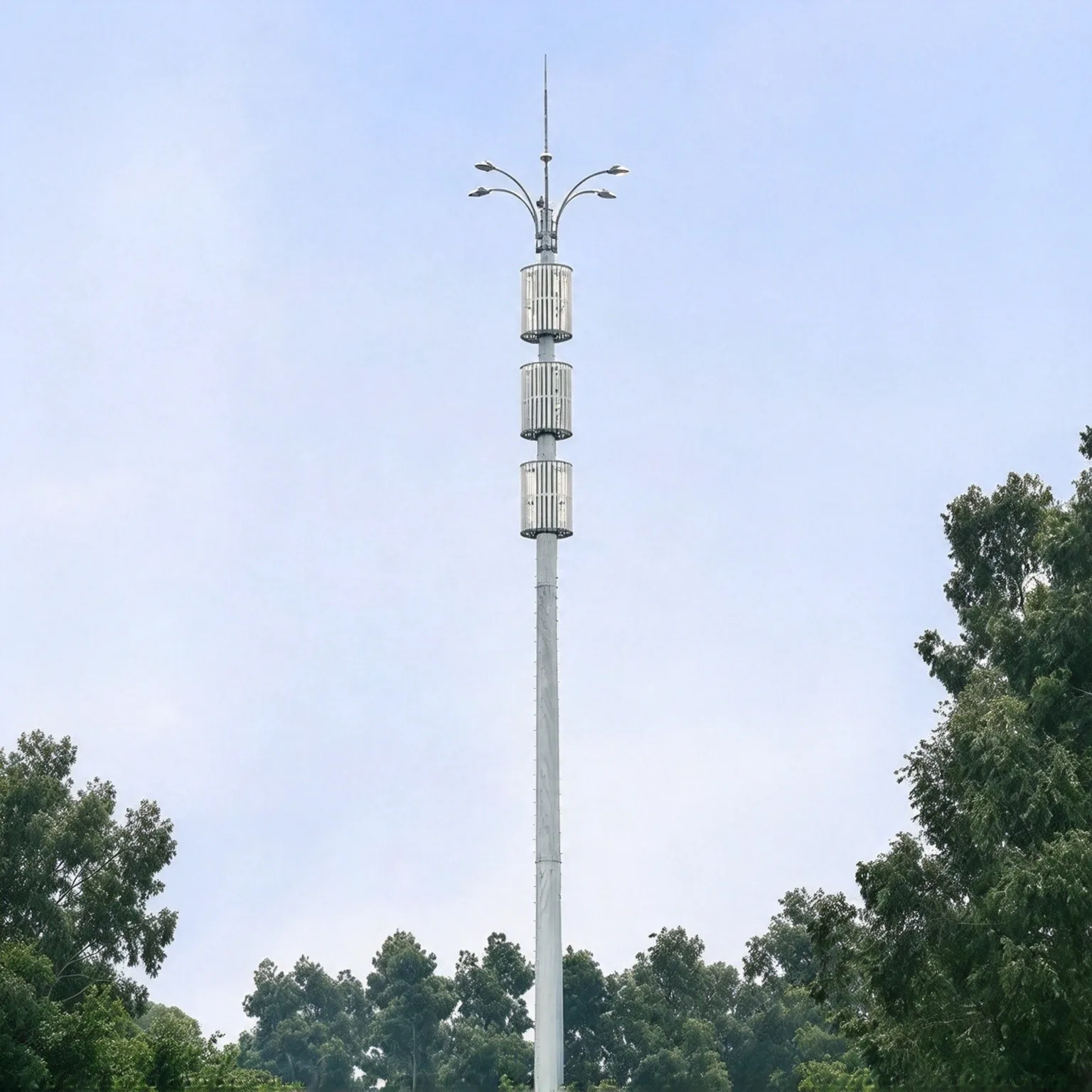

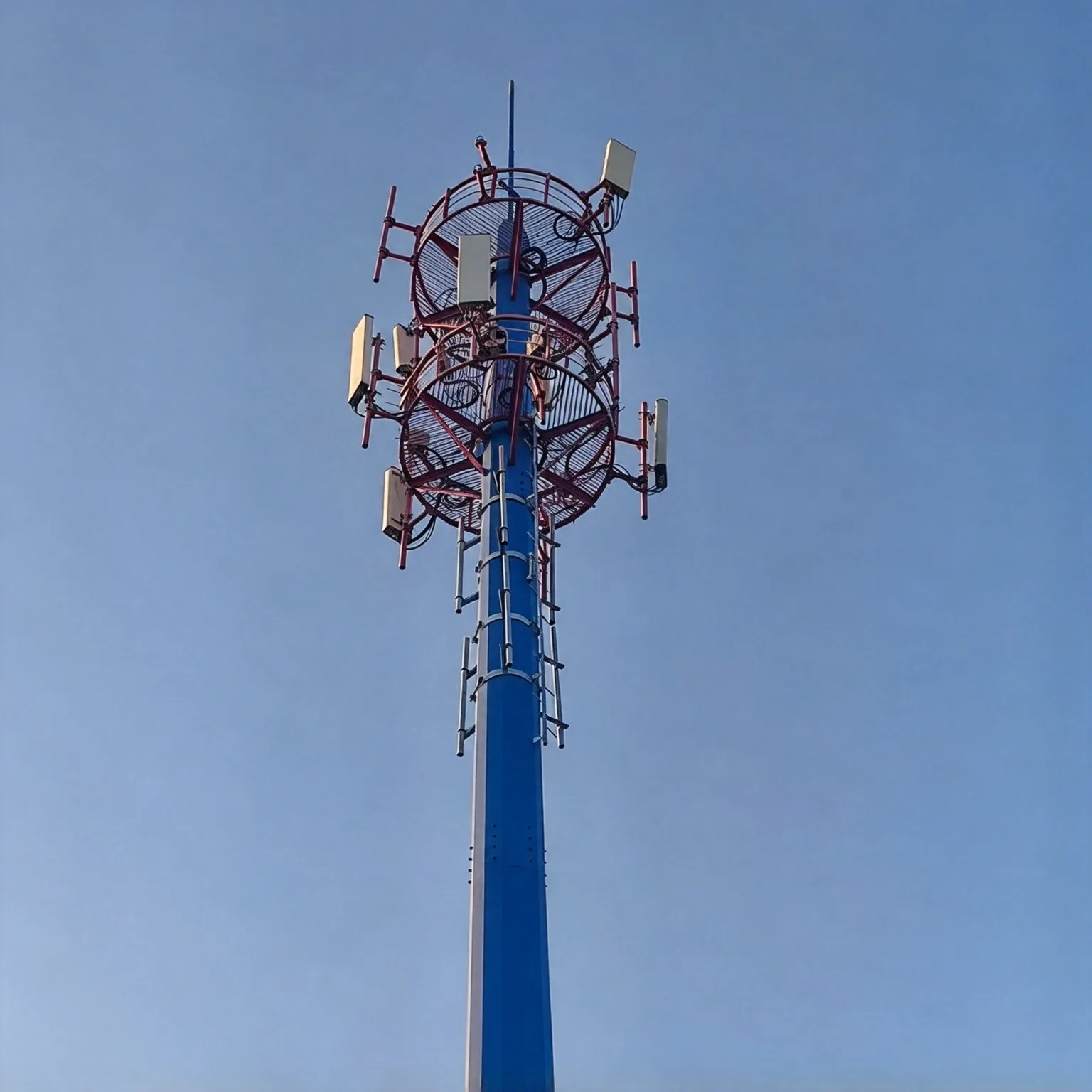

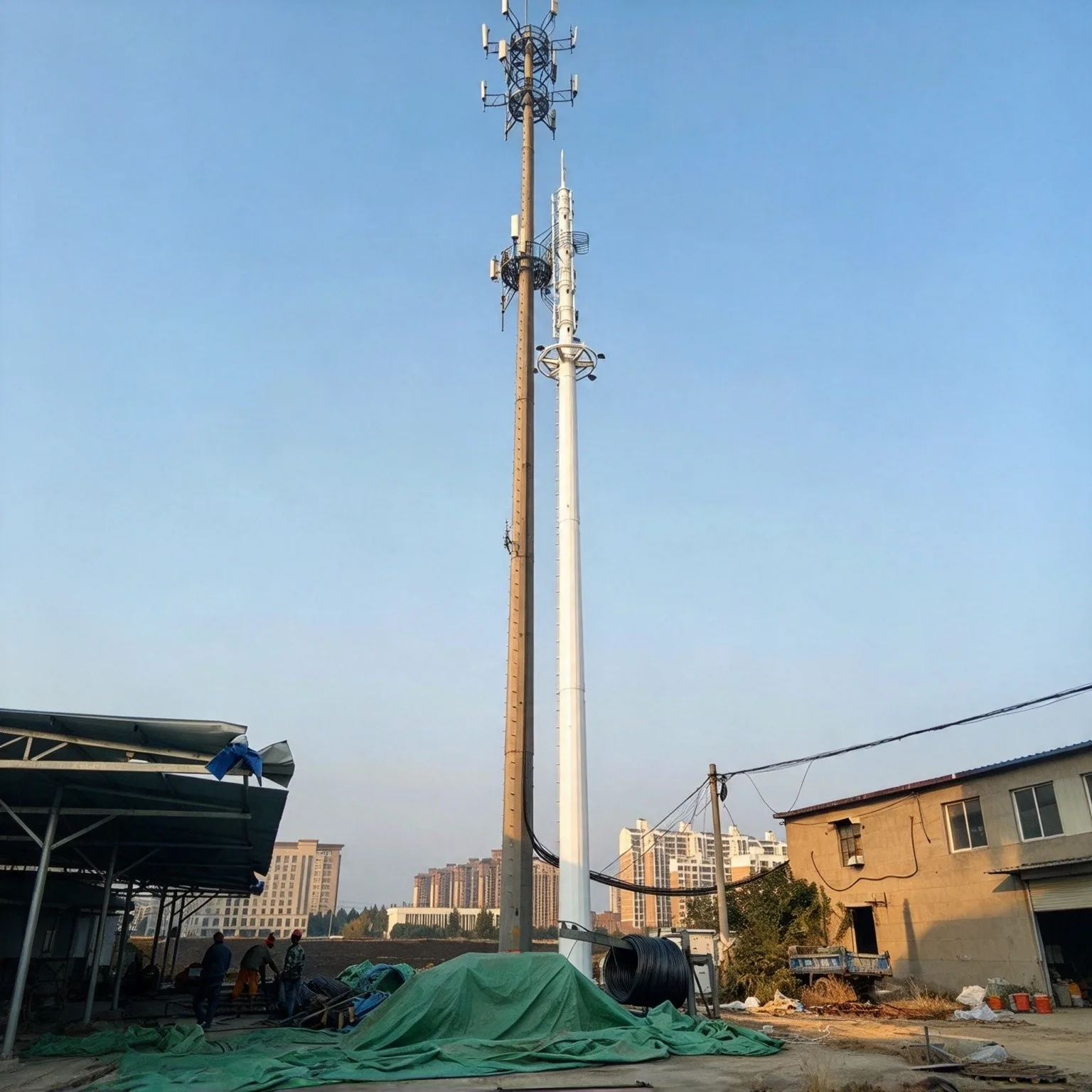

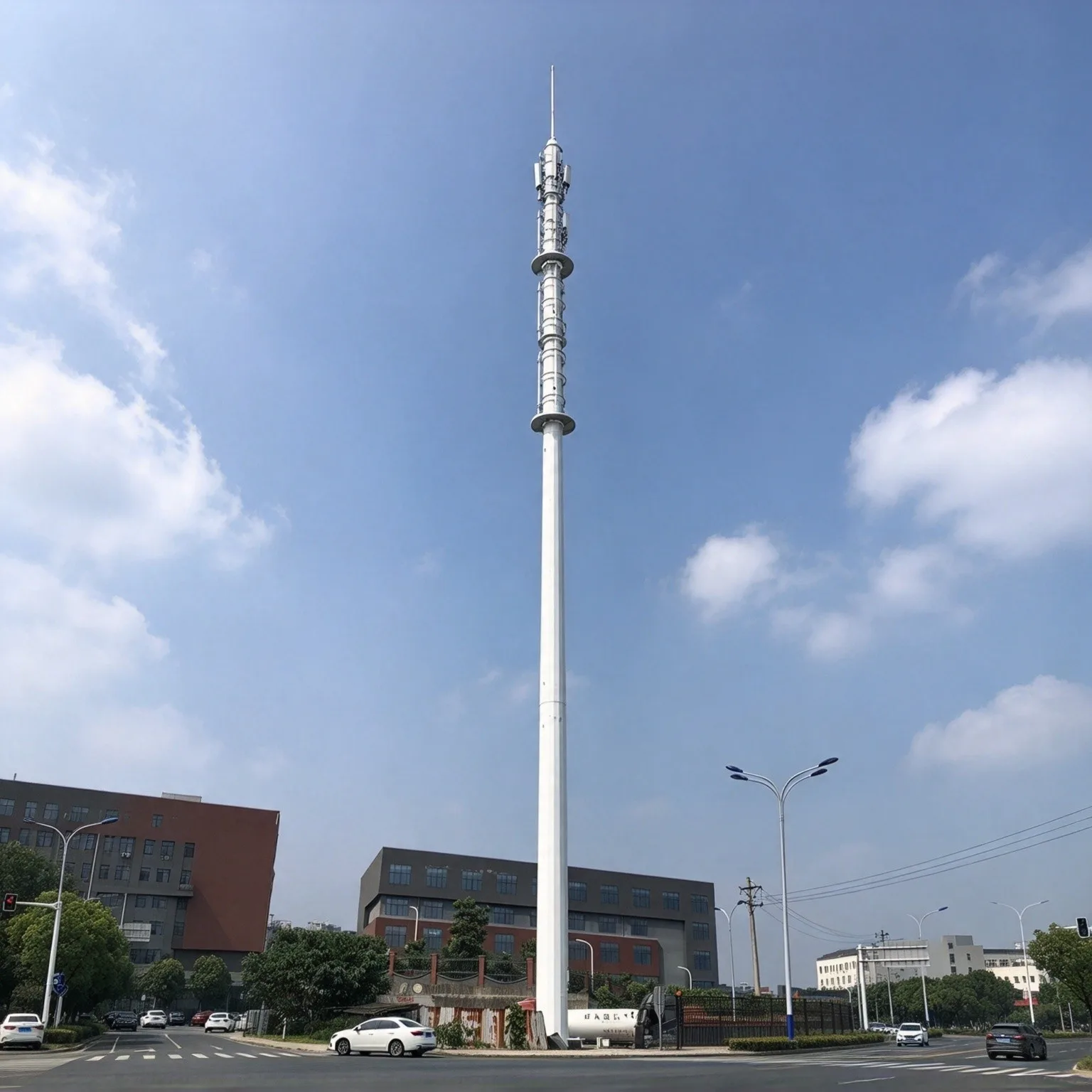

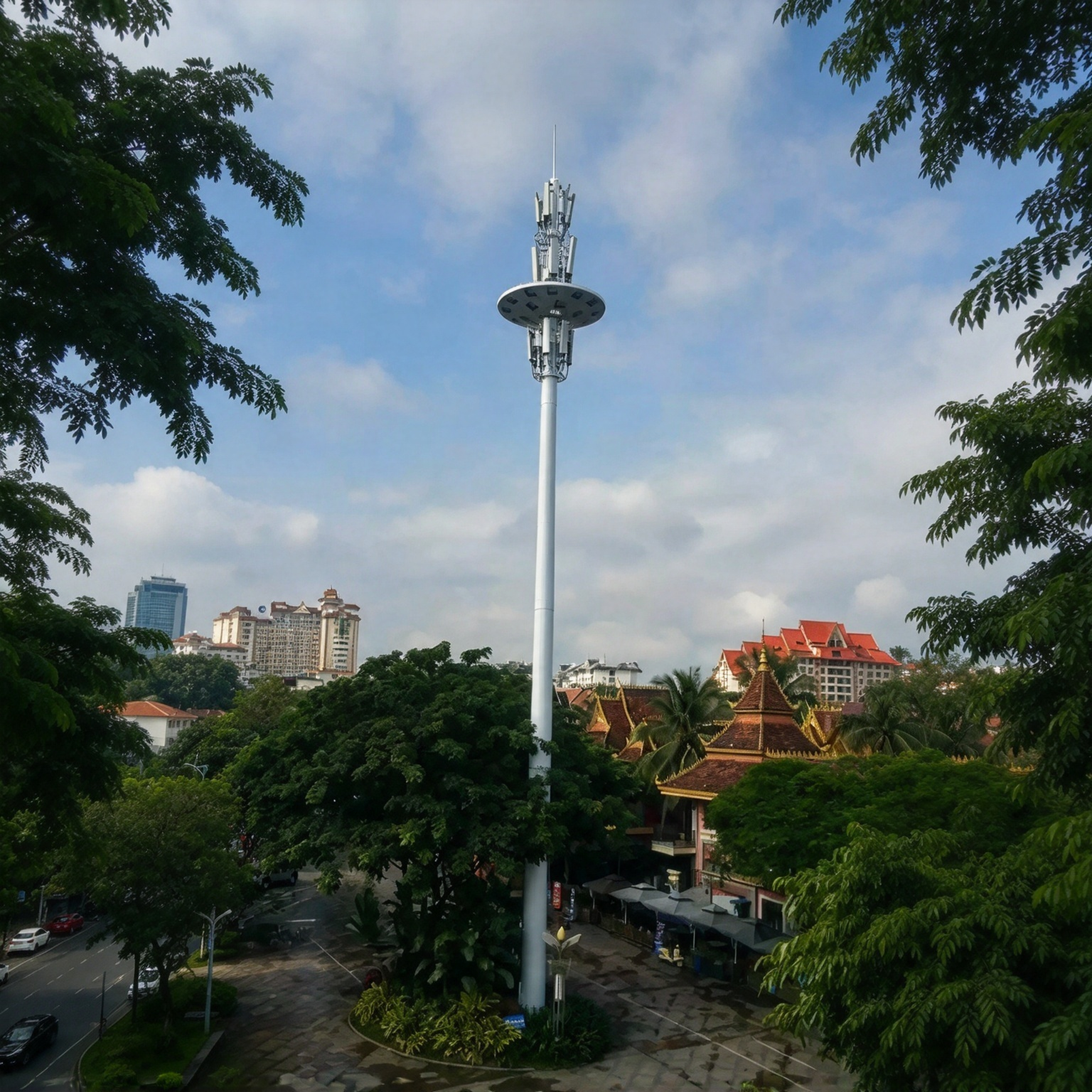

Telecom Monopole is a single tubular steel structure for mounting antennas, microwave dishes and radio devices to support signal transmission for cellular communication cell sites.
Featuring a small footprint, the monopole occupies minimal ground space, making it ideal for urban, roadside and densely built locations. The streamlined single-tube design delivers clean appearance and reliable structural performance. All components adopt bolted connections for convenient transport and quick on-site installation.
All steel sections are hot‑dip galvanized for durable corrosion protection, adapting to various outdoor climate conditions. Custom design is available to match site wind load, seismic requirements and antenna loading arrangement.
Typical Use Cases
It is commonly used for urban macro cell sites, roadside mobile coverage, suburban wireless networks and other cellular communication projects where land area is limited.
Buyer Notes
To receive an accurate quotation, please provide monopole height, design wind speed, antenna payload and site requirements. Drawings or reference designs help confirm structural details before production.
How to Inquire

Submit monopole specifications, drawings and quantity to obtain our fabrication proposal. Material certificates and past project references can be provided upon request.

Item	Specification
Design Software	MS TOWER, ASM TOWER, PLS TOWER, SAP2000, etc.
Wind Speed	0–330 KM/H
Design Standard	TIA/EIA-222-G/F/H
Material	GB/T700: Q235B
	GB/T1591: Q355B, Q355C, Q355D, Q420
	ASTM A36, ASTM 572, GR50, GR65, SS400
	EN 10025: S235JR, S235JO, S235JZ
	EN 10025: S355JR, S355JO, S355JZ
Certificate	ISO9001, SGS COC
Galvanized	Hot-dipped Galvanized
Galvanization Standard	ASTM A123
Nuts & Bolts	Grade 8.8，ASTM A325M Type1 (830MPa)
Welding Standard	AWS D1.1
Welding Method	CO₂ Shielded Arc Welding; Submerged Arc Welding (SAW)
Bolts & Nuts Galvanization Standard	ISO 1461 or ASTM A153
Supply Ability	5,000 MT per month
