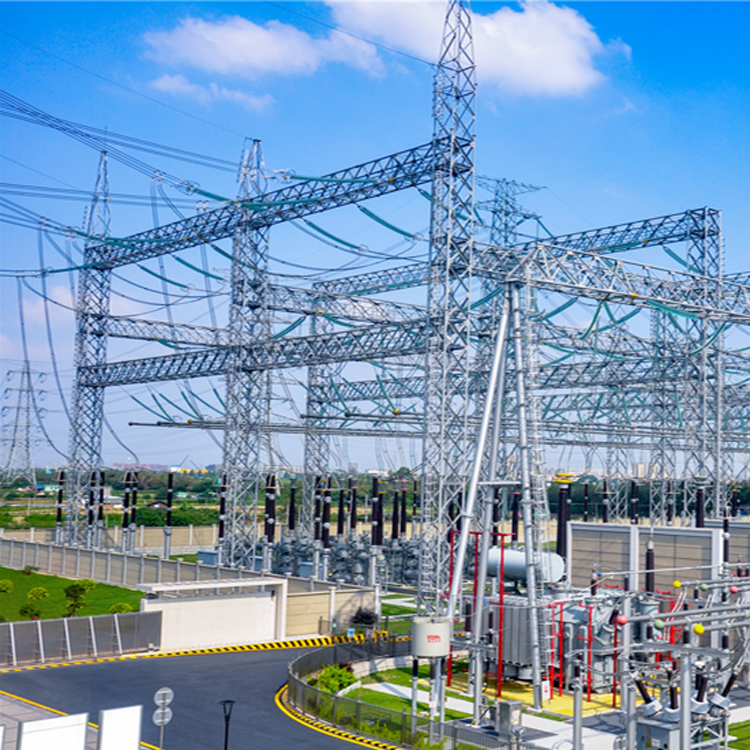

Hengshui Yuanming Steel Structure Co., Ltd. manufactures gantry steel pole substation transformer structures for electrical power projects. These structures form the supporting framework around substation transformers, carrying conductors, busbars and associated equipment while keeping clearances and access routes in order.

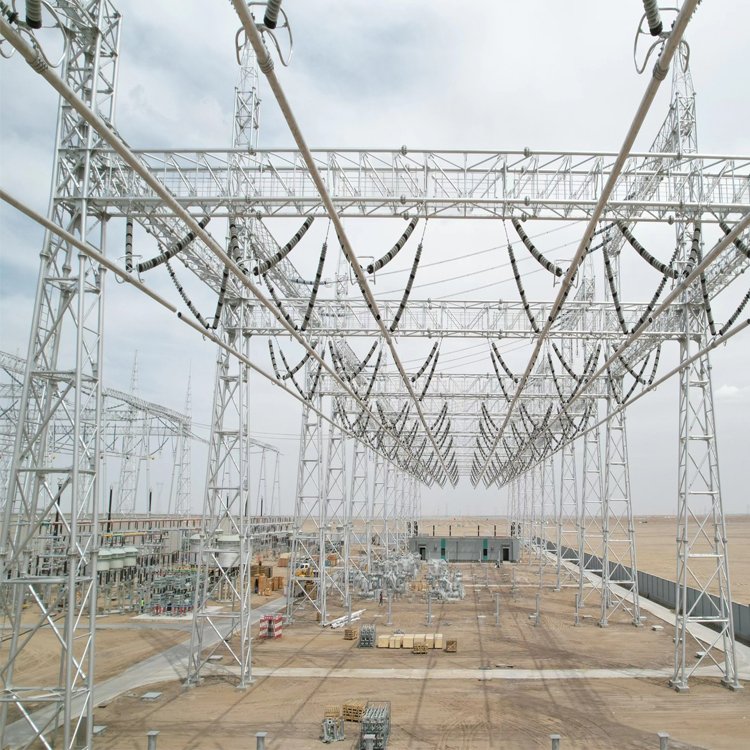

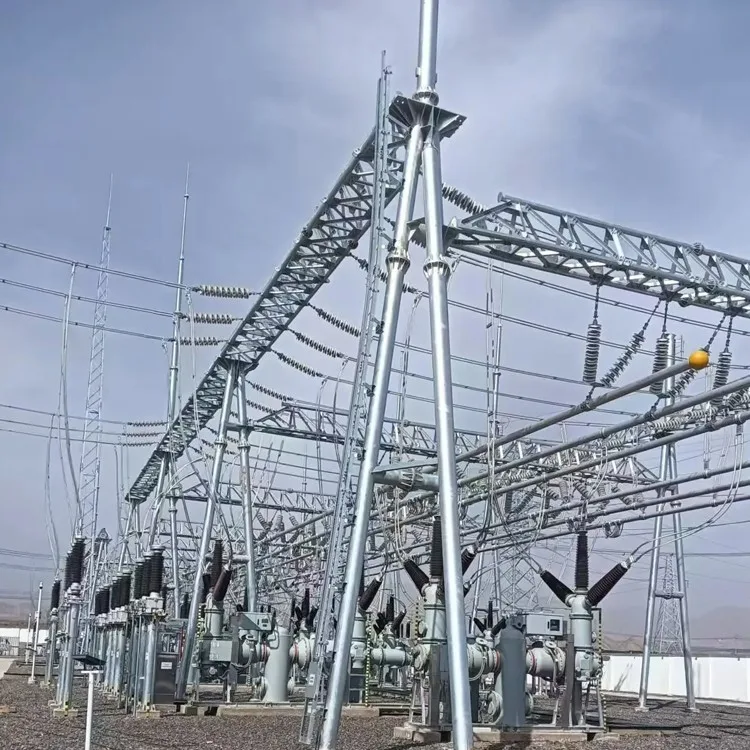

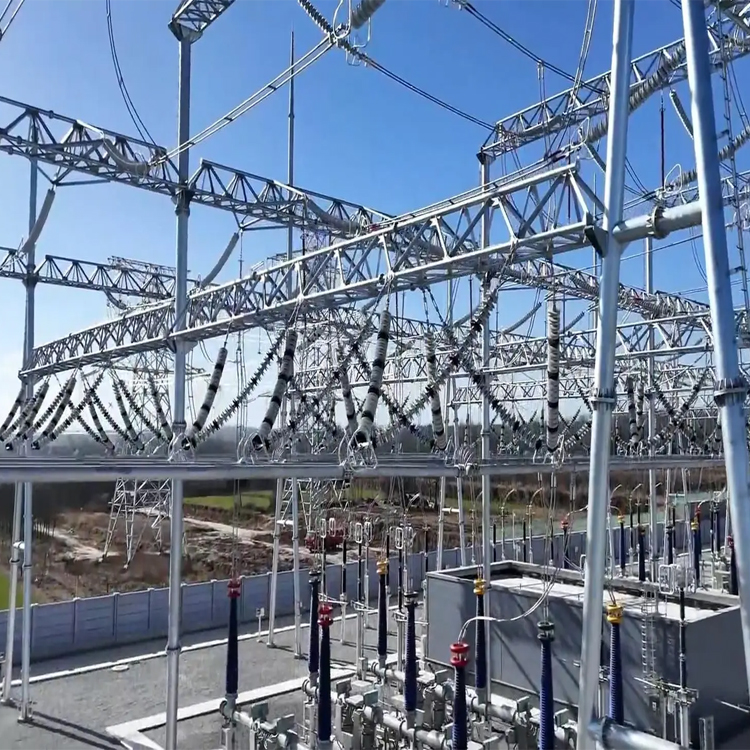

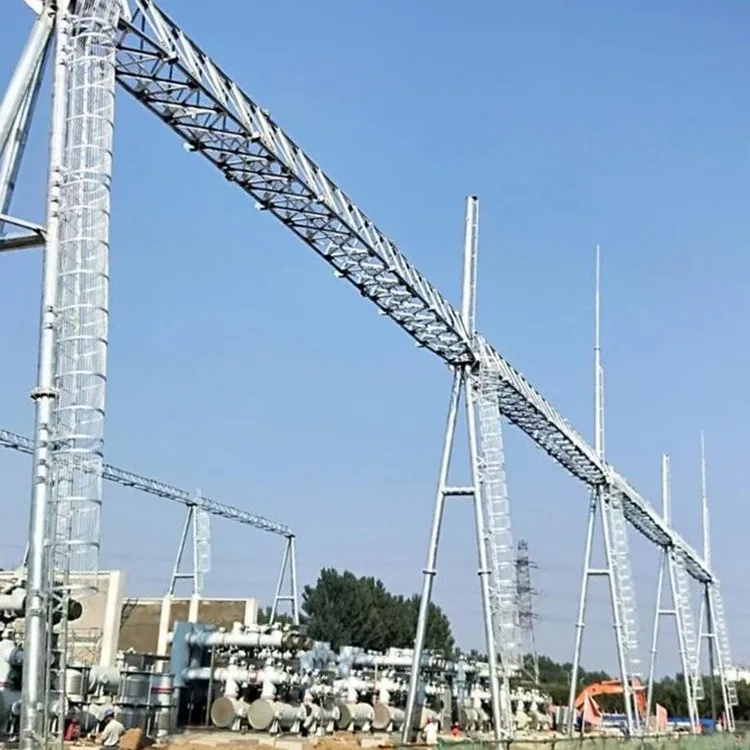

A gantry frame spans the transformer bay and provides elevated support points for incoming and outgoing lines. Steel poles carry the vertical loads, while the gantry beam ties them together to create a stable, open structure. The layout leaves room for transformer inspection, cable routing and maintenance access.

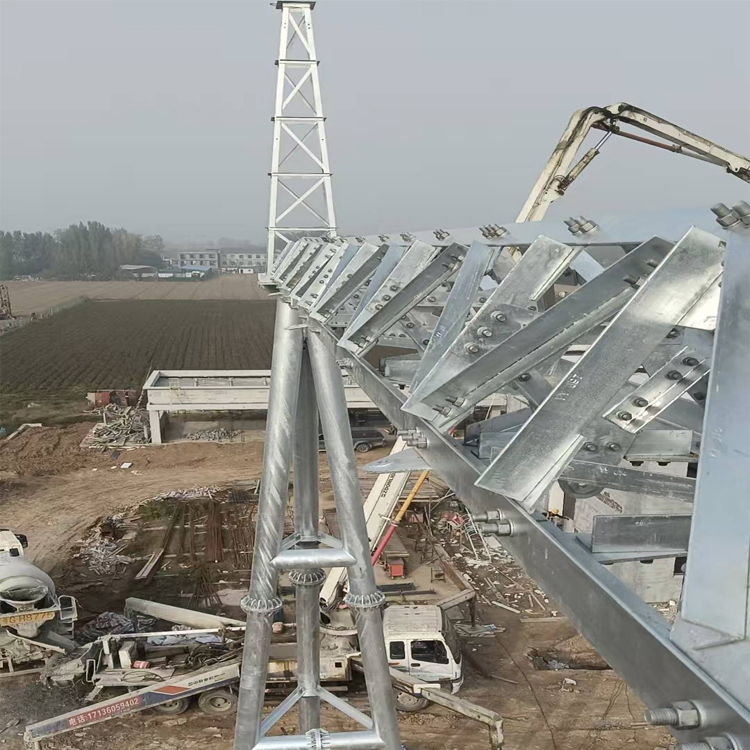

Structures are fabricated from steel sections selected to suit the span, height and loading of each project. Pole and beam connections are detailed for straightforward site assembly. Fabrication follows the approved drawings, with cutting, welding and surface preparation carried out in the workshop before delivery.
Because every substation layout differs, gantry structures are made to order. Share your span, height, loading and site conditions, and the structure can be detailed to match the transformer arrangement.
As a steel structure manufacturer, we focus on fabrication of support frames for electrical power facilities. From drawing review to finished steelwork, each structure is built to the project specification. Contact us with your requirements to discuss your substation transformer structure.
