Bionic Tree Telecom Tower

Bionic tree telecom tower by Hengshui Yuanming Steel Structure Co., Ltd. Camouflaged steel structure for wireless networks. Item No. 1004.
  • Item No.1004
Get a Quote
Product Details

Product Overview

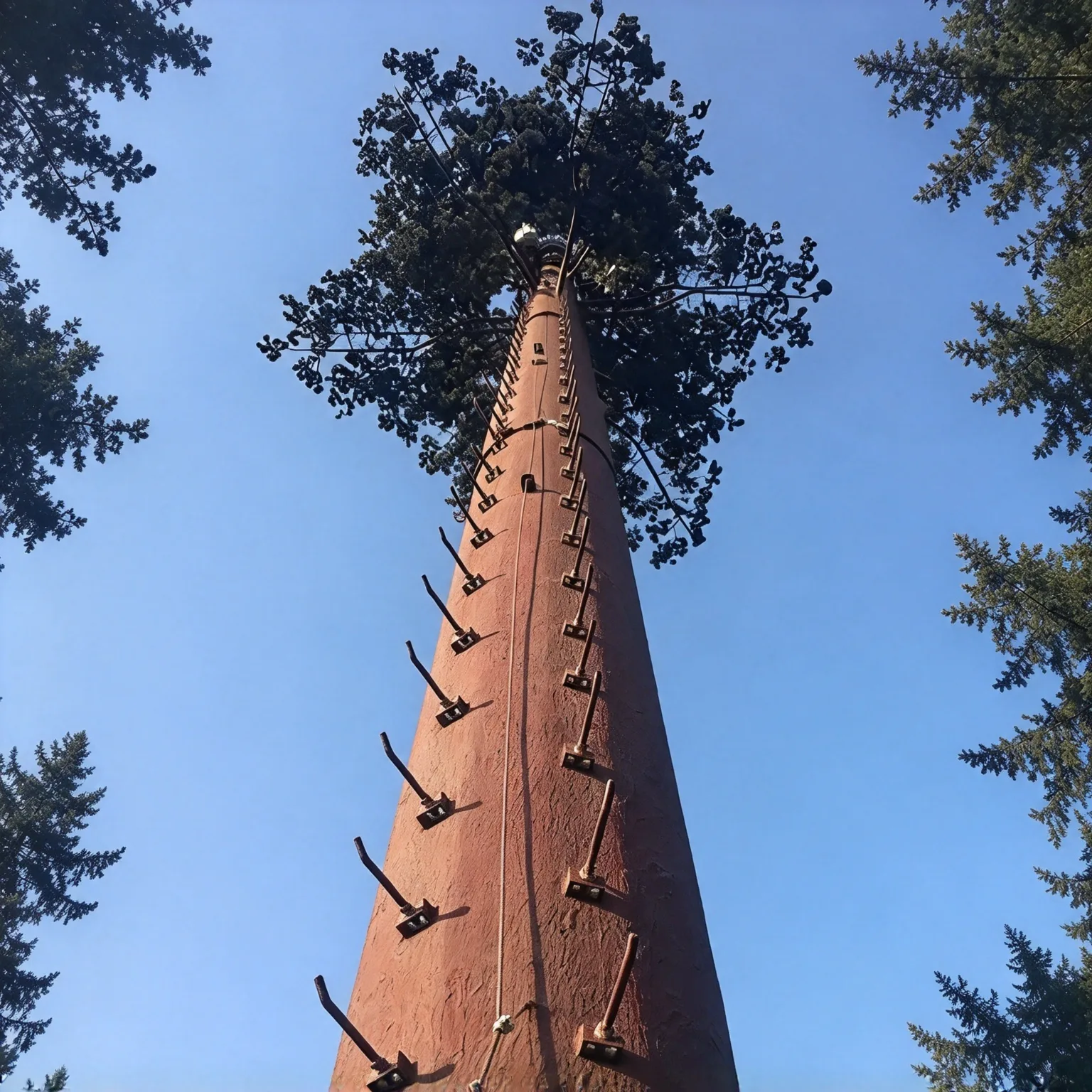

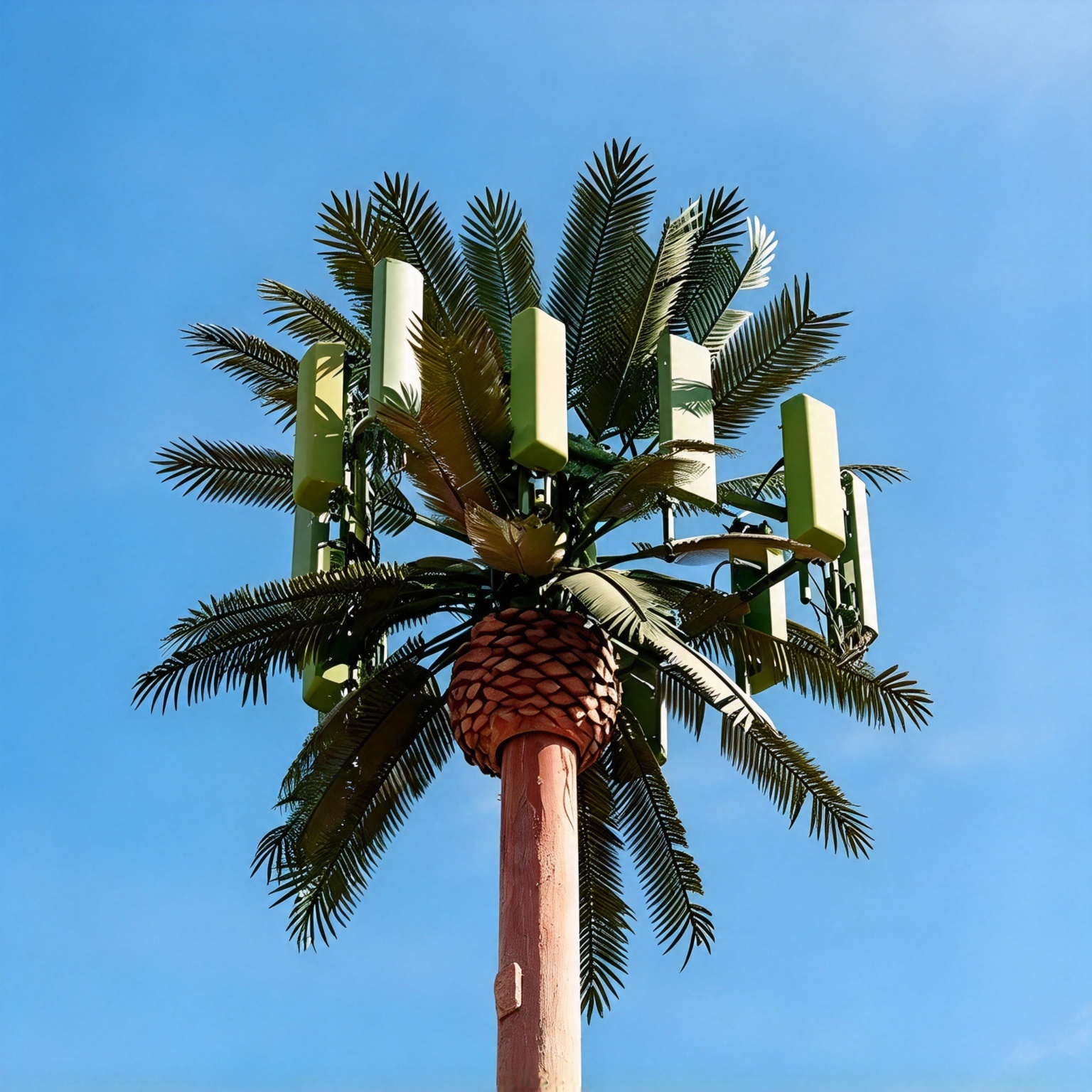

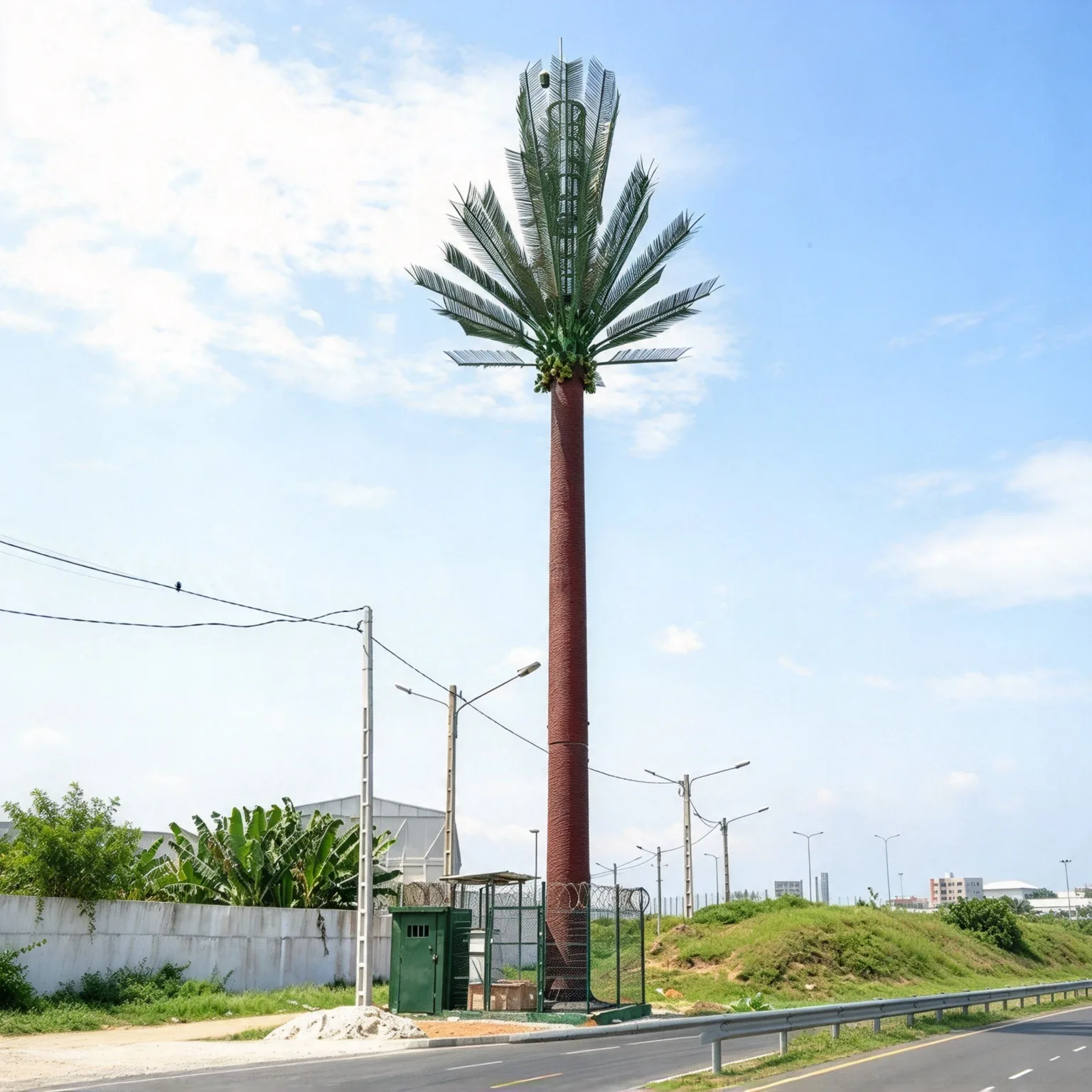

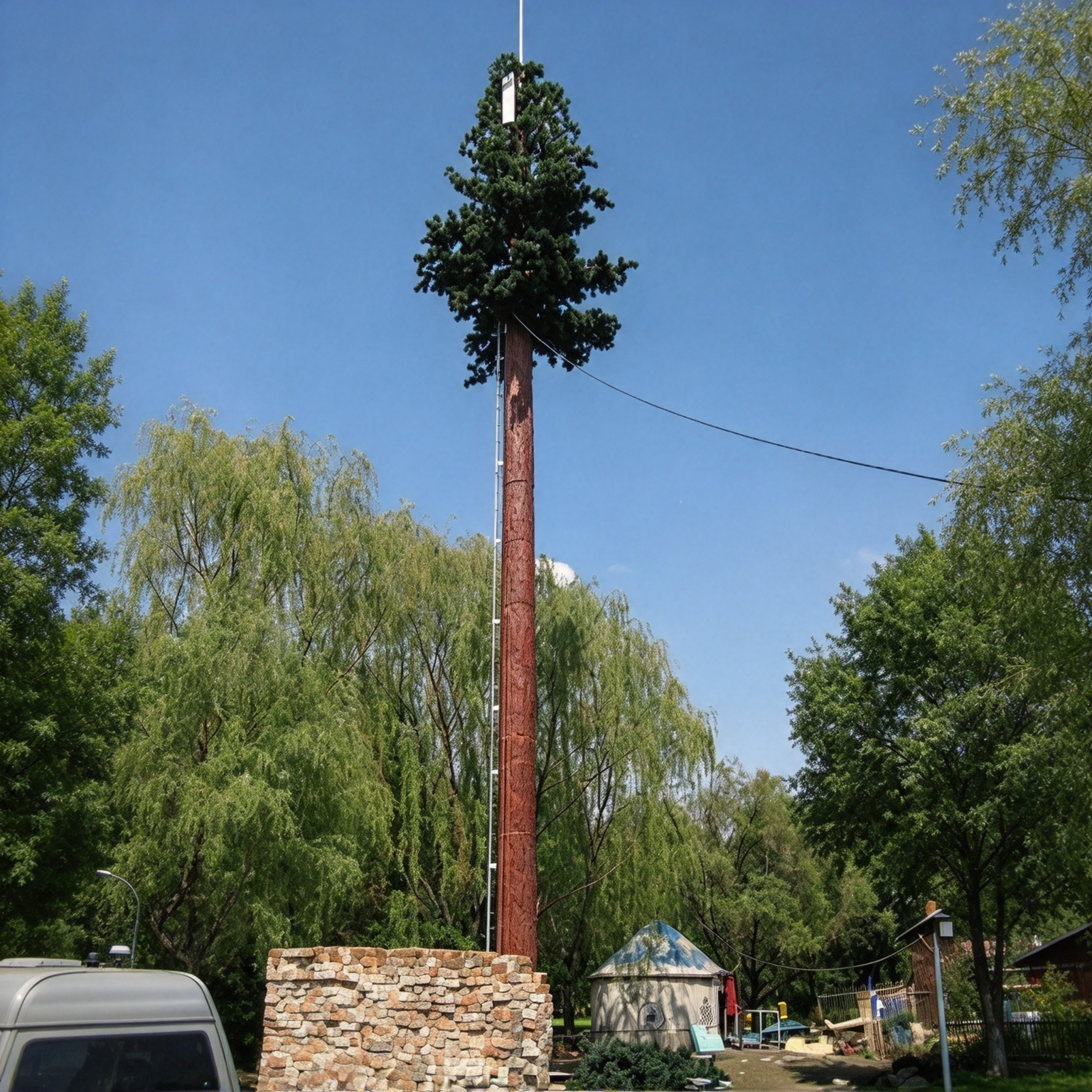

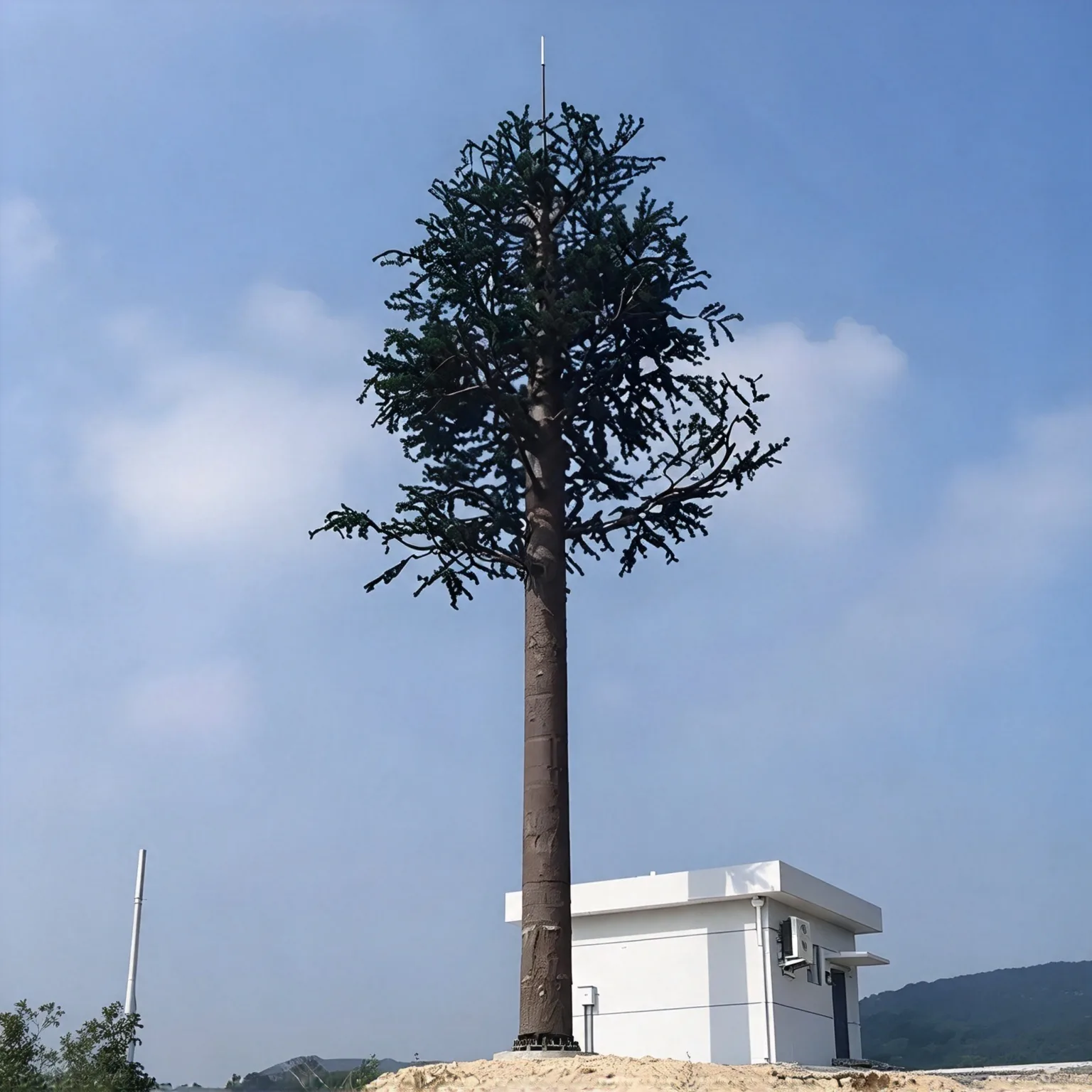

Bionic Tree Telecom Tower, also known as camouflaged tree tower, is a landscape‑friendly steel communication structure designed for cellular communication cell sites. It adopts a standard galvanized steel tower body concealed under highly simulated tree bark, branches and foliage, perfectly disguising communication antennas and radio equipment.

This tower retains the structural stability and wind resistance of traditional telecom towers while eliminating visual interference with urban landscapes, scenic areas and residential zones. The RF‑transparent bionic accessories ensure minimal signal attenuation, maintaining stable cellular signal transmission quality. All steel components are bolted for easy transportation and quick on‑site erection.

The whole structure is hot‑dip galvanized for superior anti‑corrosion performance, adapting to coastal, humid and urban outdoor environments. Custom tree species, height and camouflage styles are available to match local landscape requirements.

Typical Use Cases

Ideal for scenic spots, urban parks, residential communities, golf courses, coastal landscapes and environmentally sensitive cell sites for 4G, 5G cellular network coverage.

Buyer Notes

For accurate quotation, please provide tower height, design wind speed, antenna payload, and required bionic tree style. Site landscape restrictions and camouflage standards will help confirm the final design.

How to Inquire

Send tower specifications, design requirements and quantity to receive our customized fabrication proposal. Material certificates and project cases can be provided on request.

Item Specification
Design Software MS TOWER, ASM TOWER, PLS TOWER, SAP2000, etc.
Wind Speed 0–330 KM/H
Design Standard TIA/EIA-222-G/F/H
Material GB/T700: Q235B
GB/T1591: Q355B, Q355C, Q355D, Q420
ASTM A36, ASTM 572, GR50, GR65, SS400
EN 10025: S235JR, S235JO, S235JZ
EN 10025: S355JR, S355JO, S355JZ
Certificate ISO9001, SGS COC
Galvanized Hot-dipped Galvanized
Galvanization Standard ASTM A123
Nuts & Bolts Grade 8.8,ASTM A325M Type1 (830MPa)
Welding Standard AWS D1.1
Welding Method CO₂ Shielded Arc Welding; Submerged Arc Welding (SAW)
Bolts & Nuts Galvanization Standard ISO 1461 or ASTM A153
Supply Ability 5,000 MT per month
