Product Name: Transmission Towers

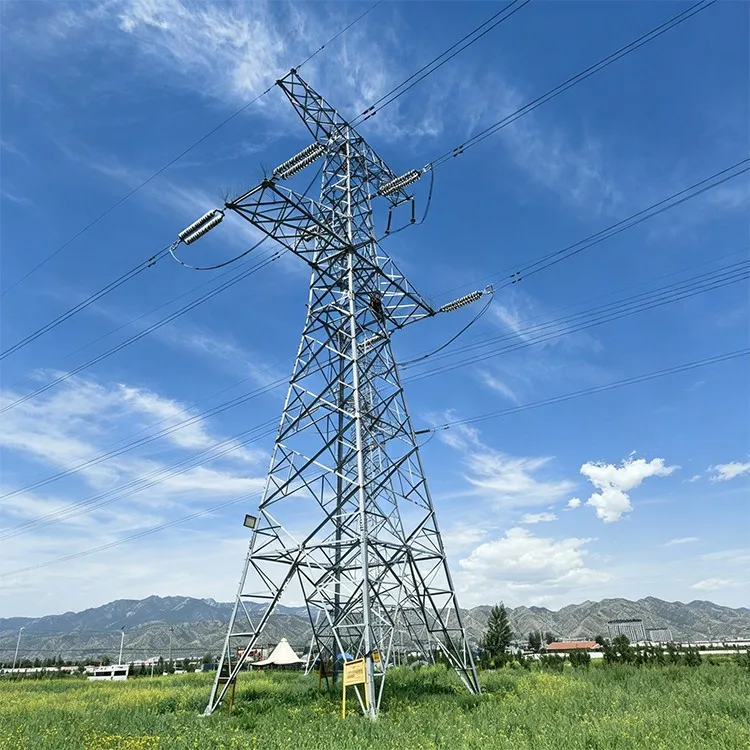

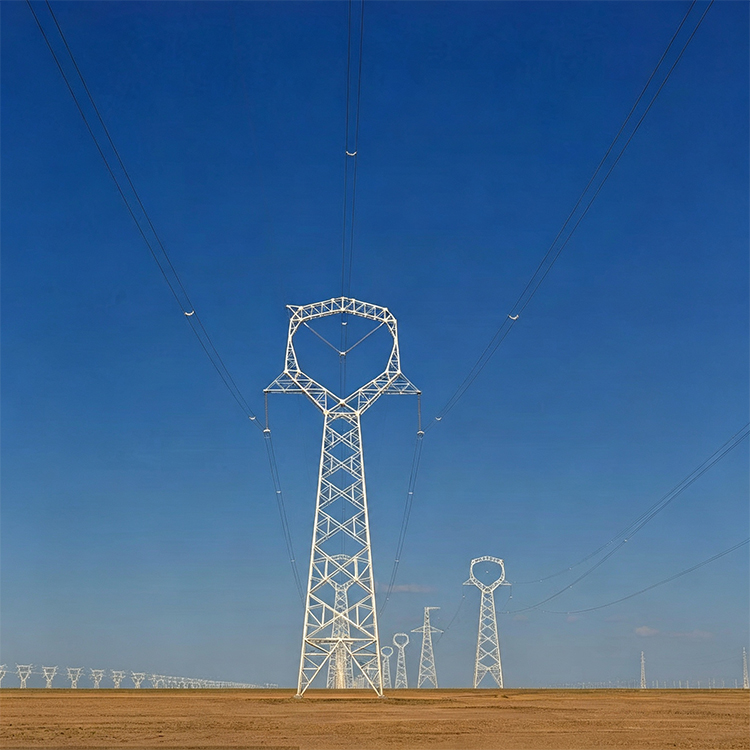

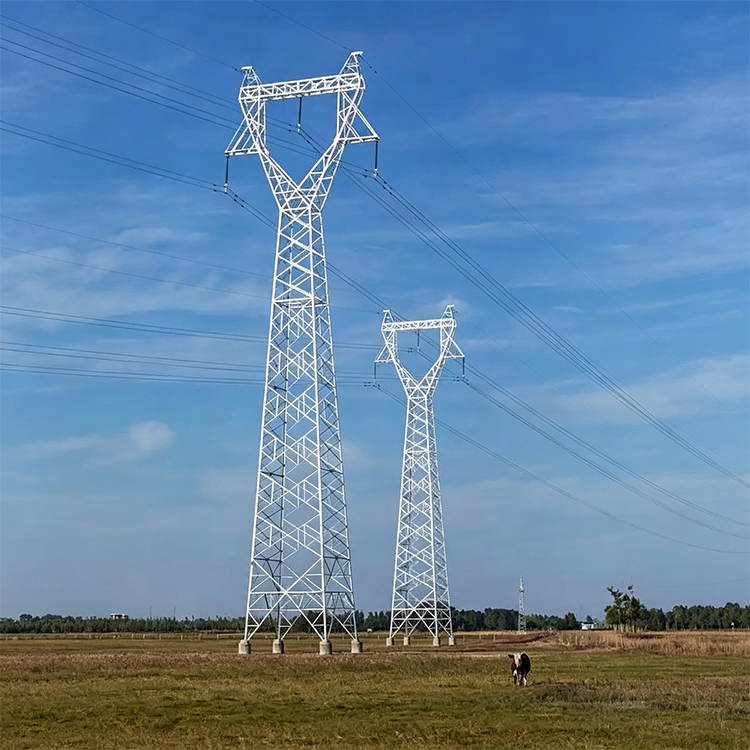

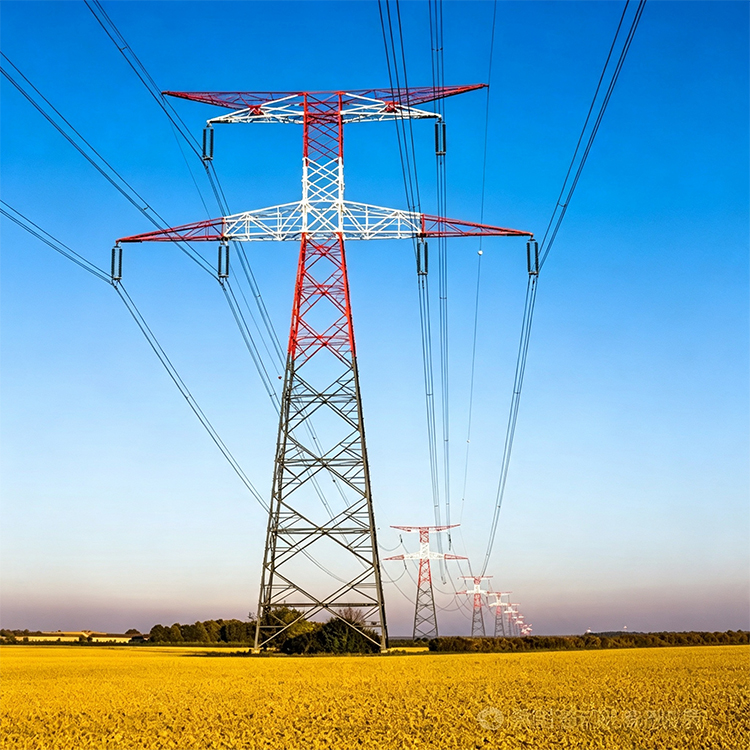

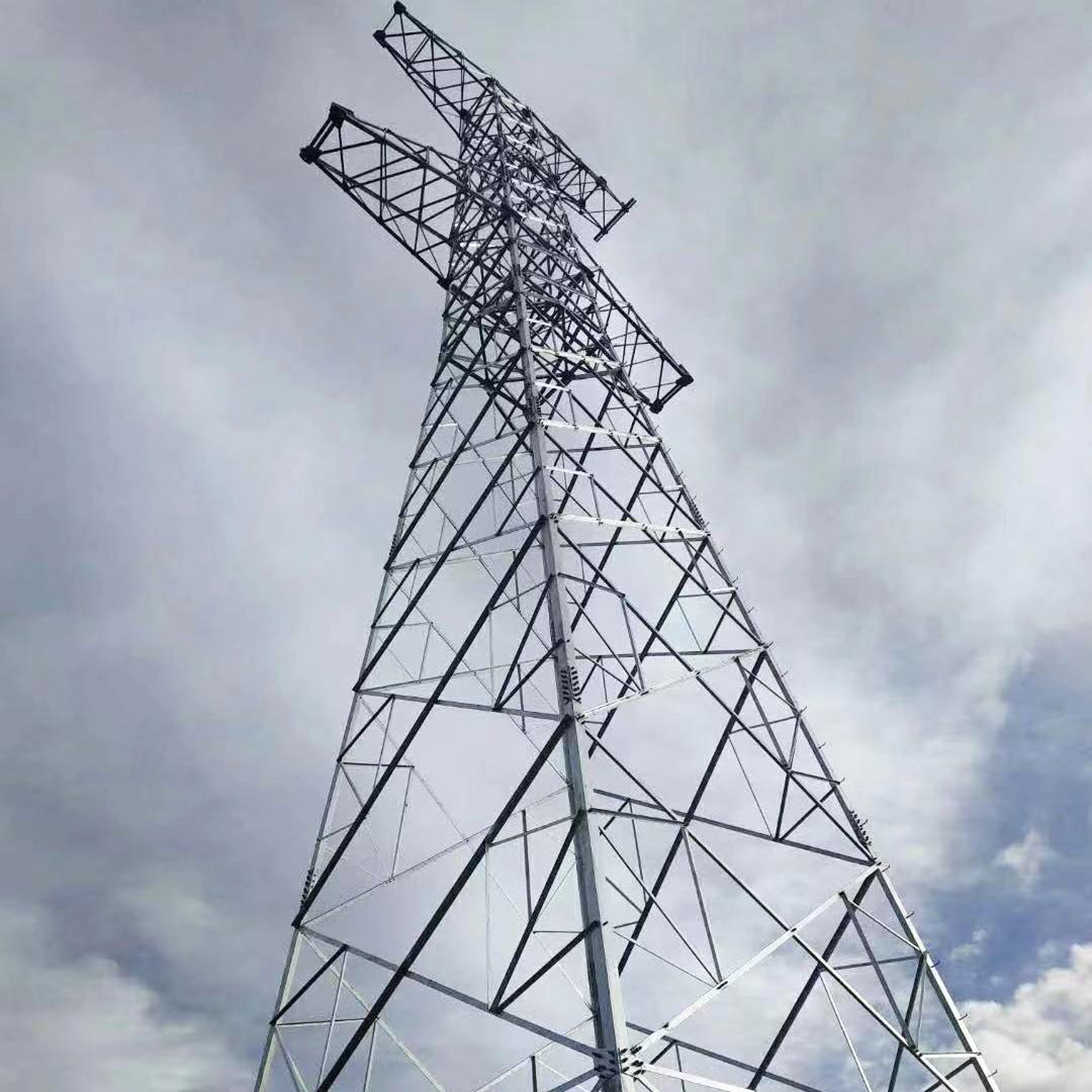

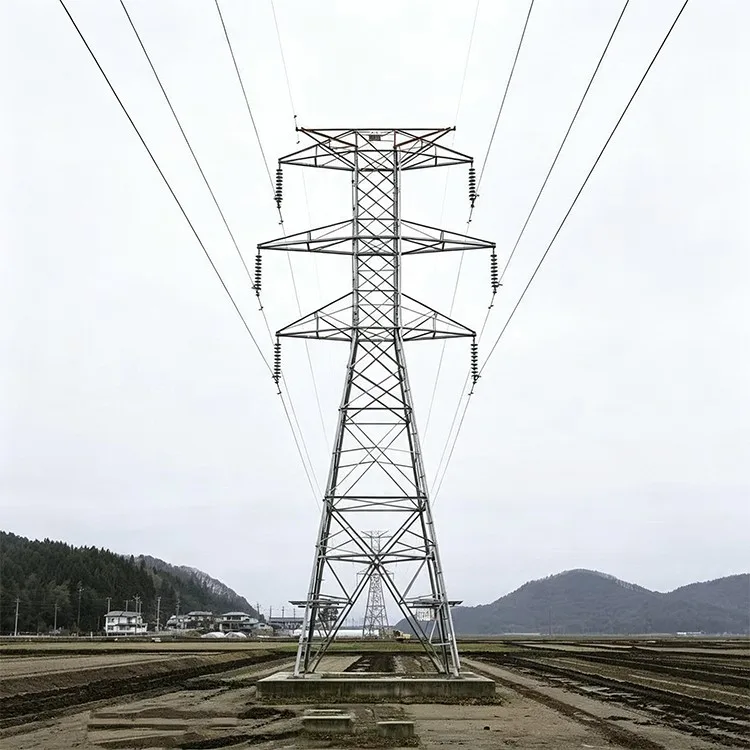

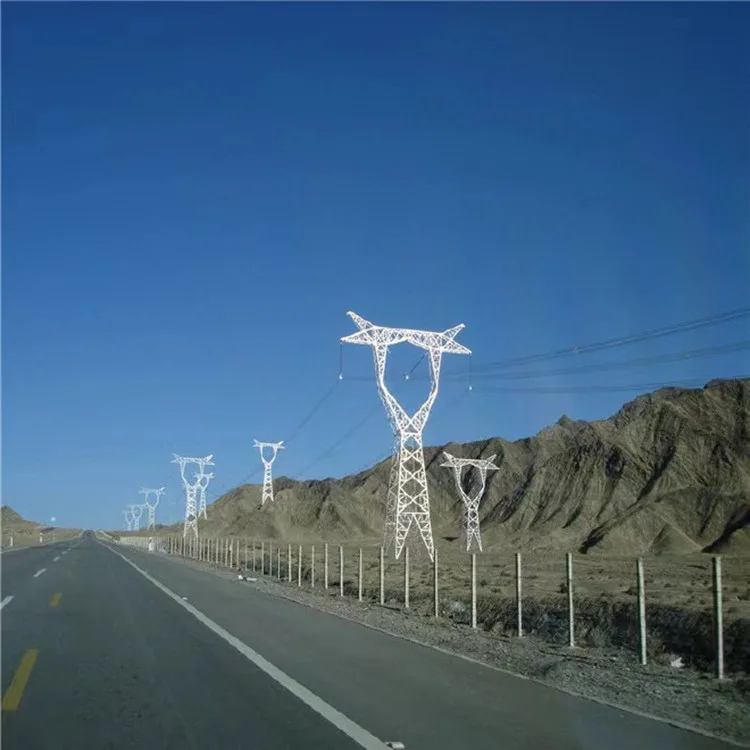

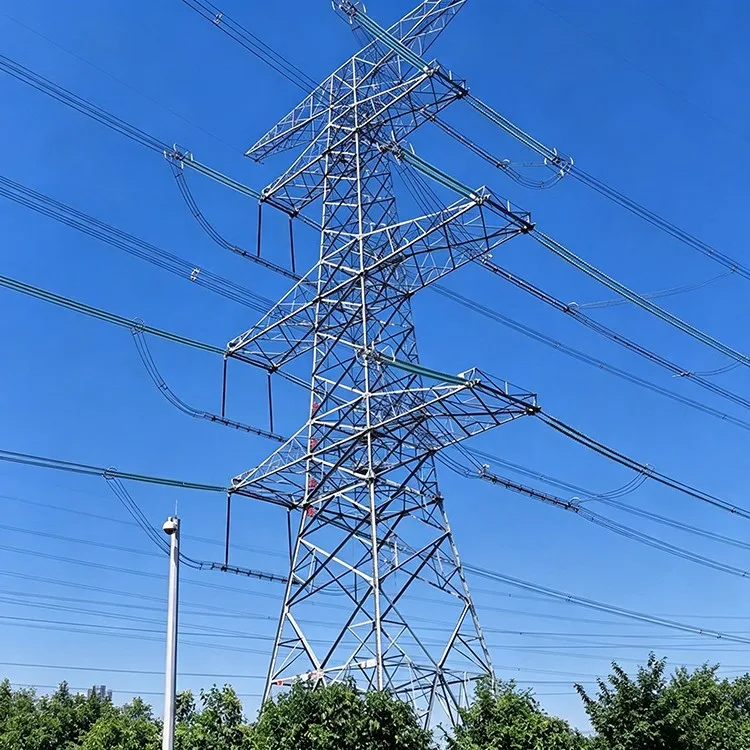

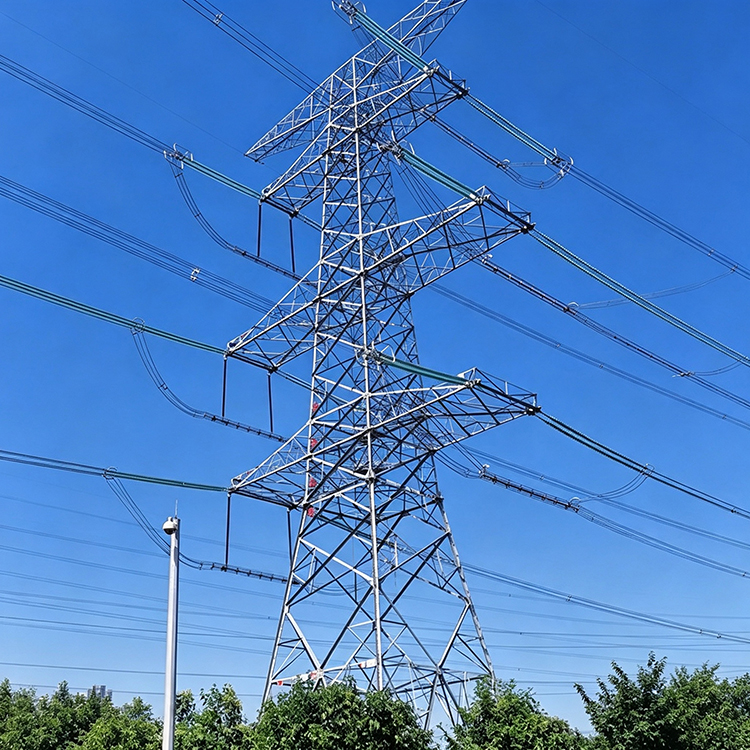

Transmission Towers are self‑supporting lattice‑type steel structures assembled from angle‑steel components. Known for great structural robustness, they offer stable performance under various natural conditions.
Modular component design simplifies manufacturing, transportation and on‑site assembly. Each steel part receives hot‑dip galvanizing treatment to achieve long‑lasting anti‑corrosion performance for outdoor service.

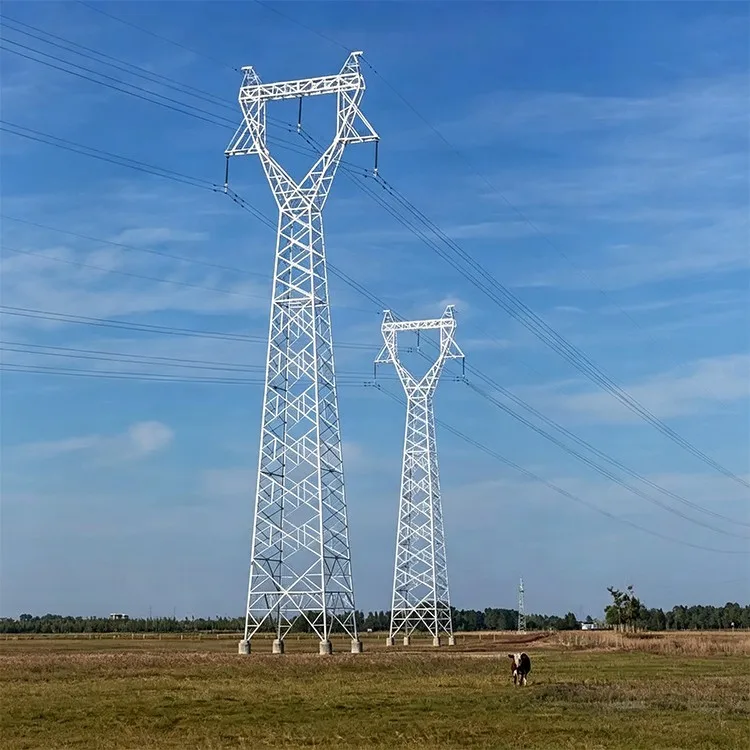

These towers are widely deployed for high‑voltage and ultra‑high‑voltage overhead power transmission lines. Custom‑built to match actual project requirements, they are a proven, reliable infrastructure choice for power grid construction worldwide.
Item
Specification
Product Name
Transmission Towers
Design Software
MS TOWER, ASM TOWER, PLS TOWER, SAP2000, etc.
Wind Speed
0–330 KM/H
Design Standard
TIA/EIA-222-G/F/H
Material
GB/T700: Q235B
GB/T1591: Q355B, Q355C, Q355D, Q420
ASTM A36, ASTM 572, GR50, GR65, SS400
EN 10025: S235JR, S235JO, S235JZ
EN 10025: S355JR, S355JO, S355JZ
Certificate
ISO9001, SGS COC
Galvanized
Hot-dipped Galvanized
Galvanization Standard
ASTM A123
Nuts & Bolts
Grade 8.8，ASTM A325M Type1 (830MPa)
Welding Standard
AWS D1.1
Welding Method
CO₂ Shielded Arc Welding; Submerged Arc Welding (SAW)
Bolts & Nuts Galvanization Standard
ISO 1461 or ASTM A153
Supply Ability
5,000 MT per month
