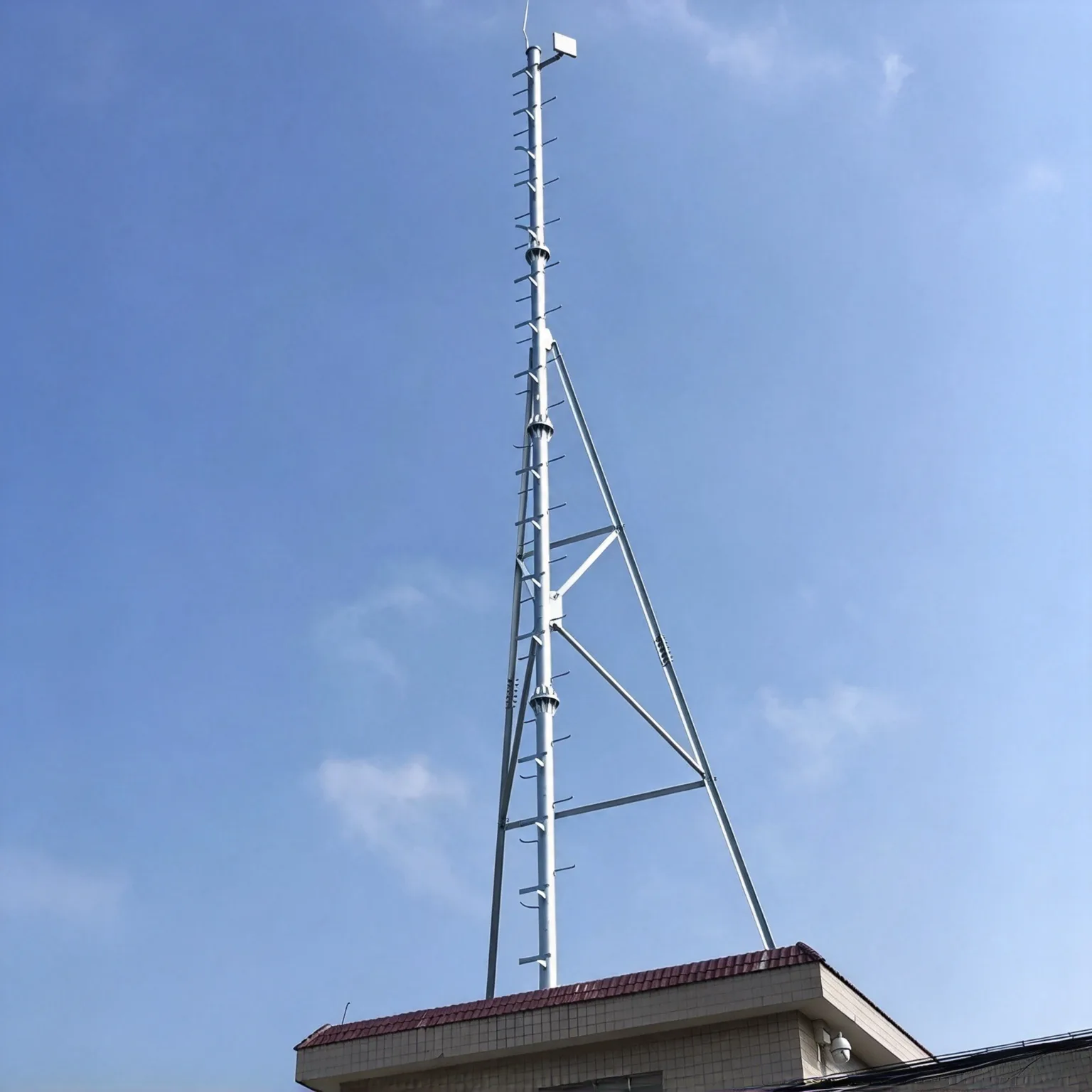

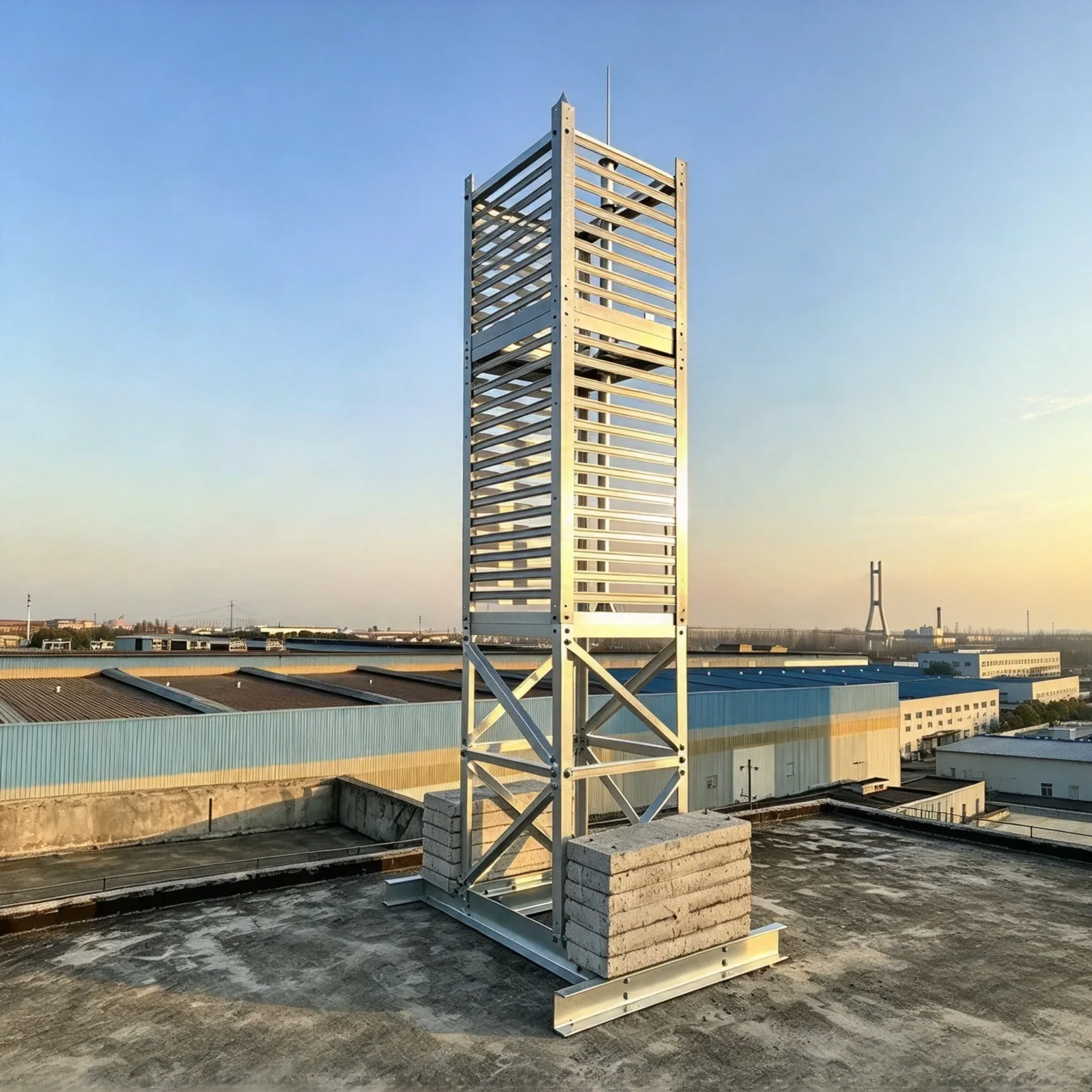

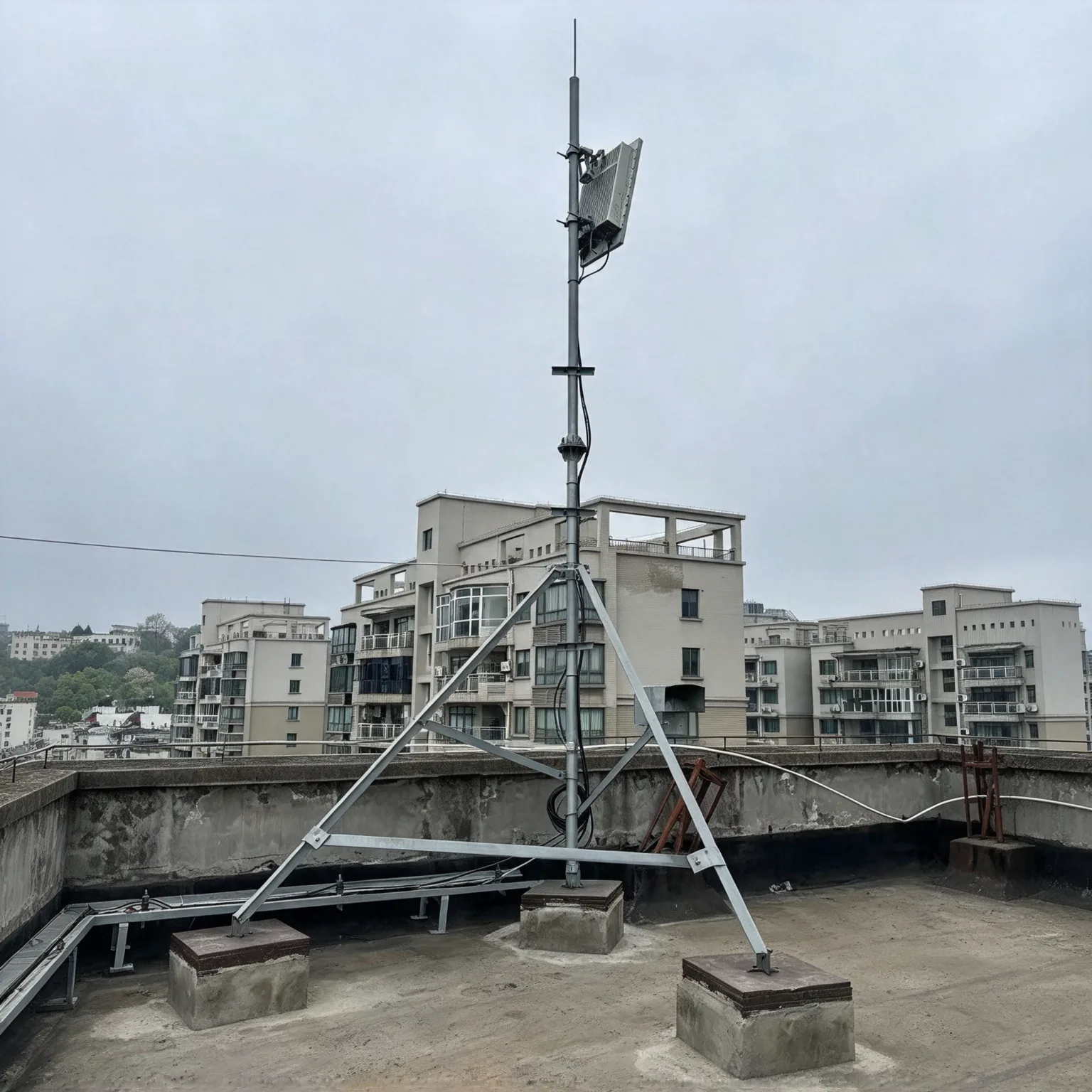

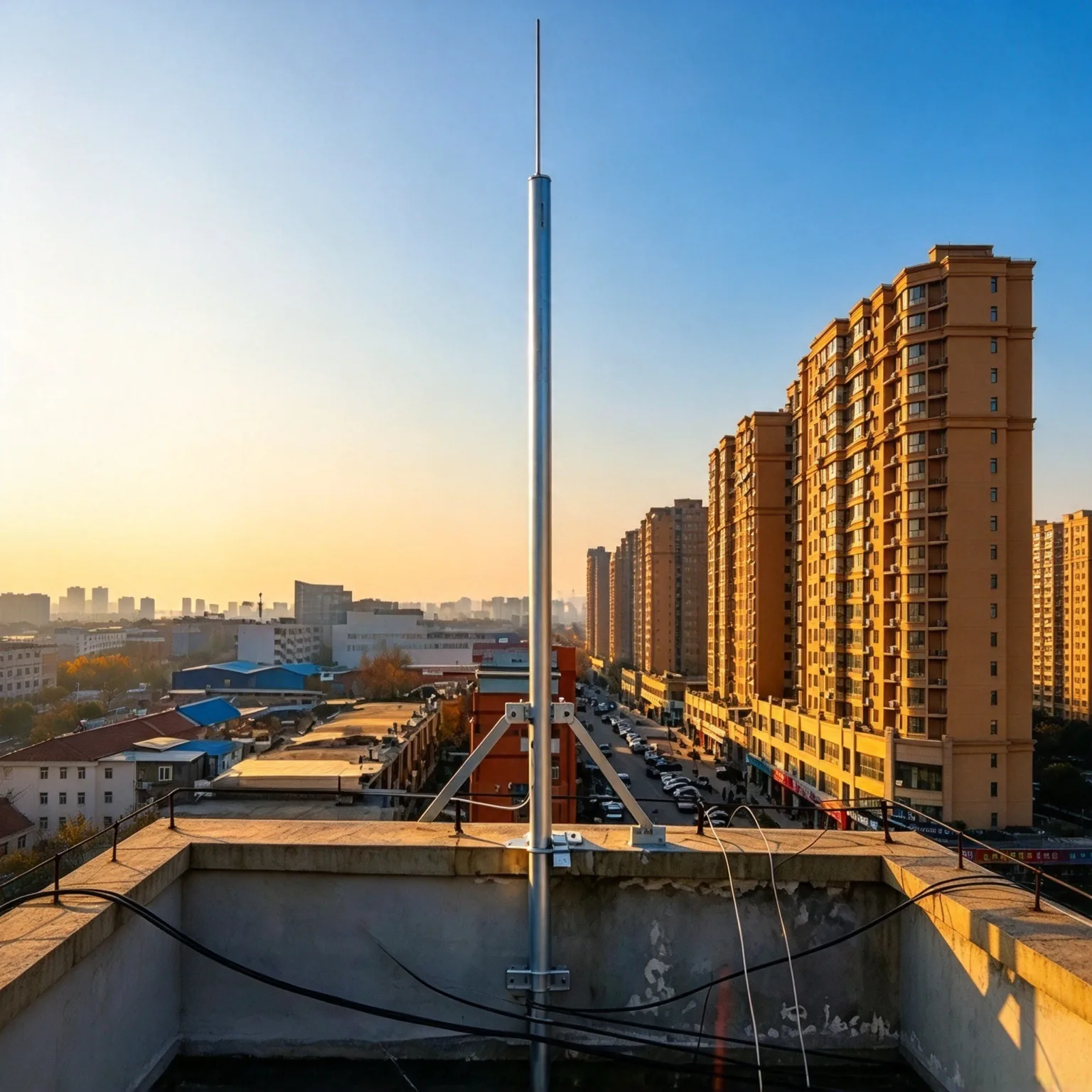

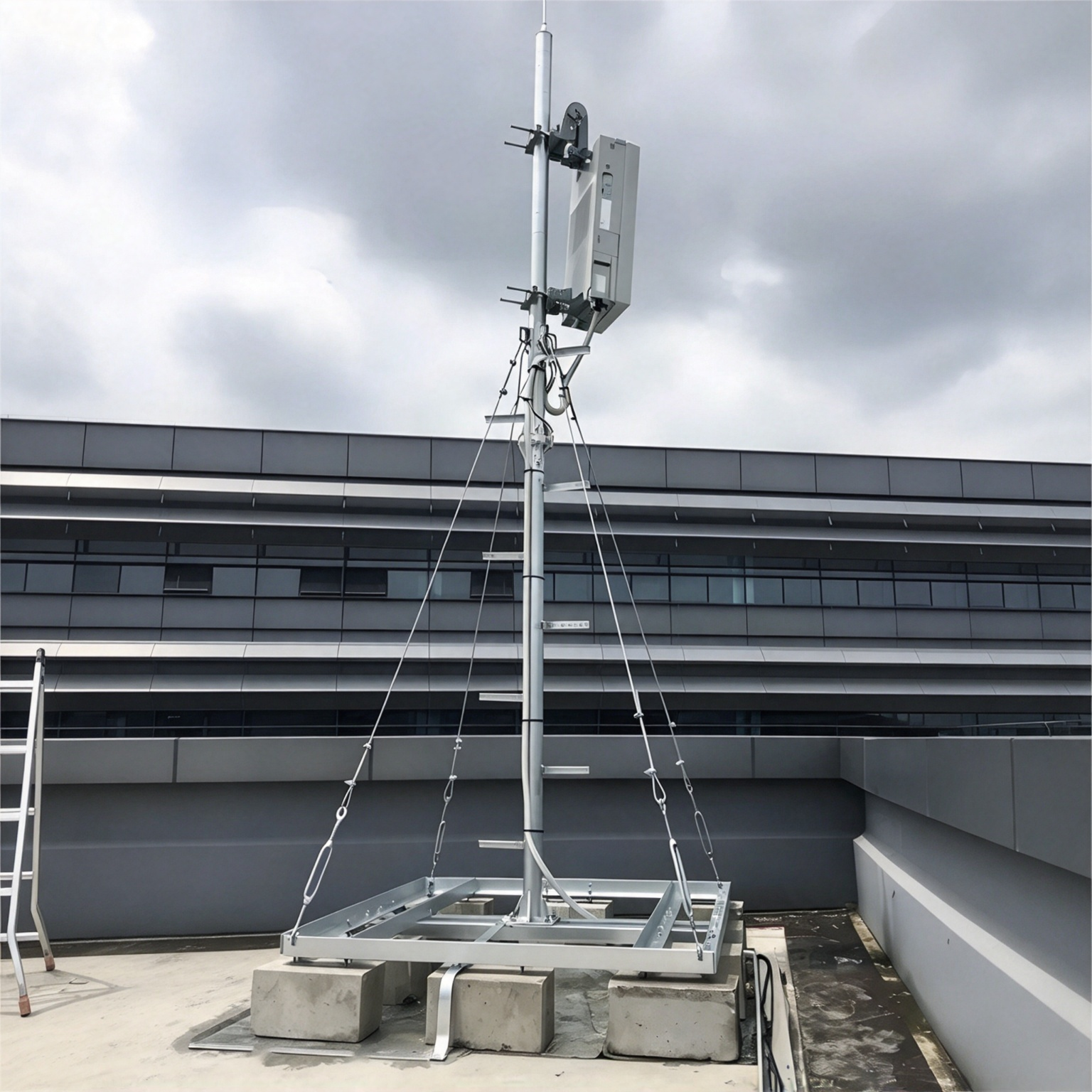

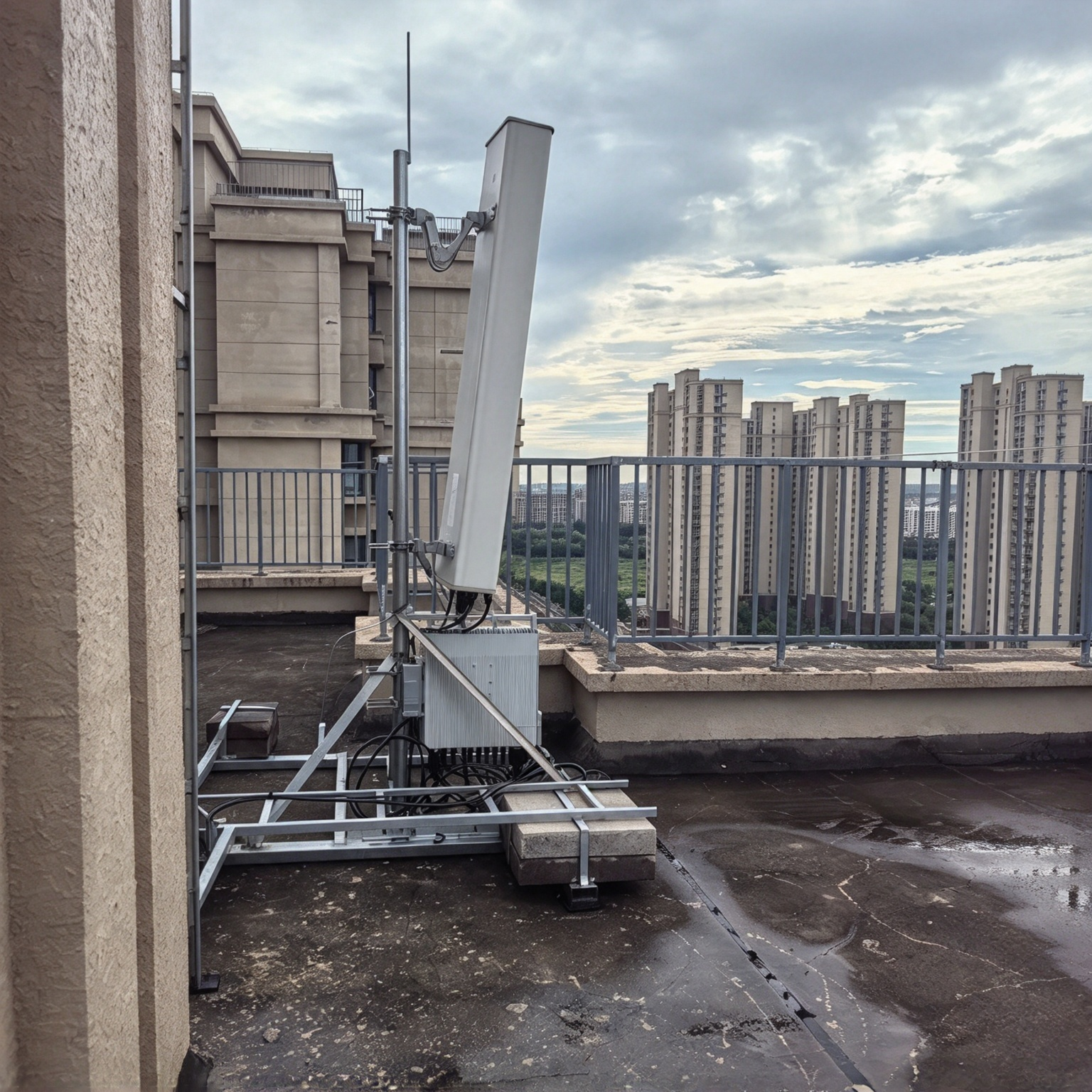

Communication Mast is a slender steel support structure built to mount antennas and radio equipment for cellular communication cell sites. It delivers stable signal transmission with a relatively light self-weight.

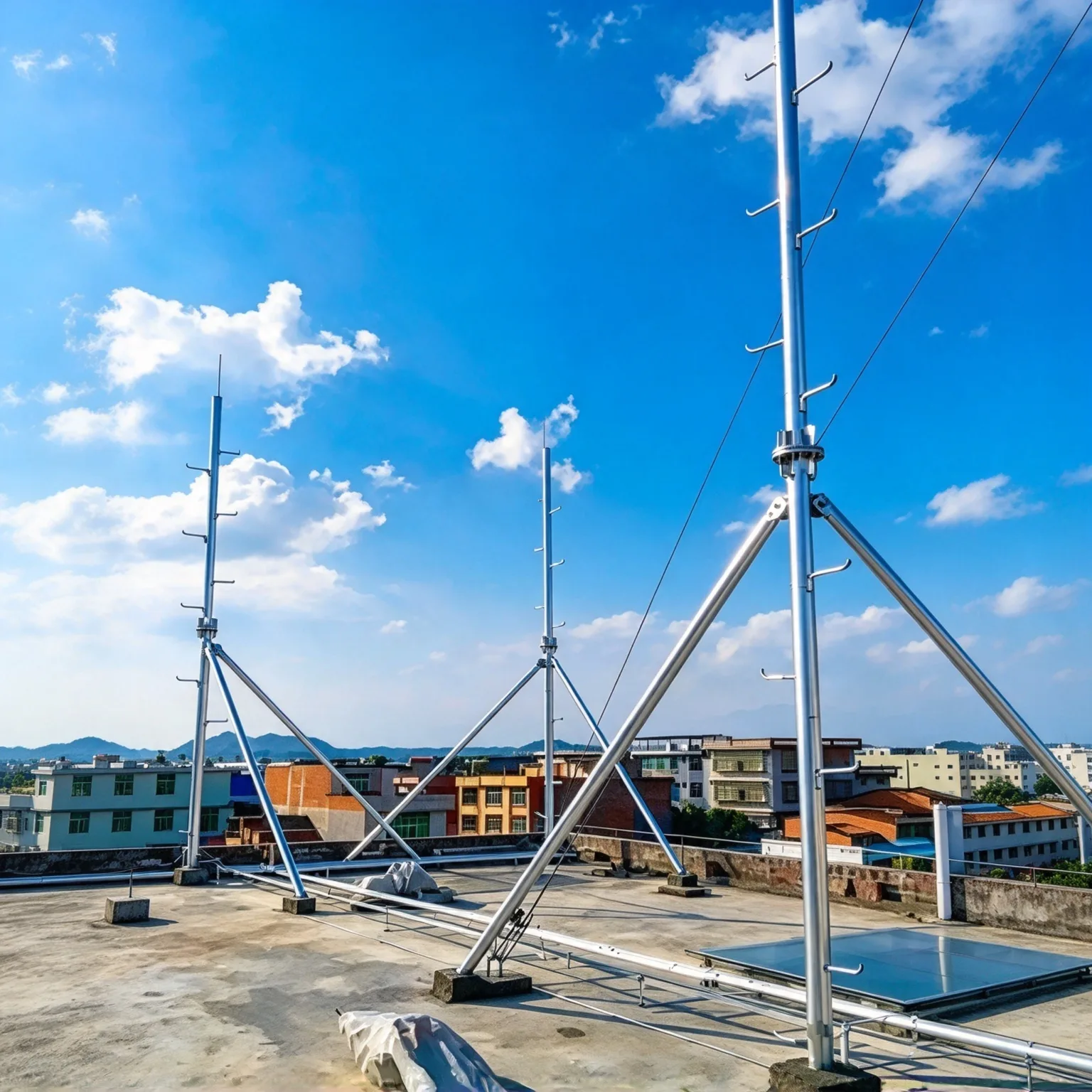

The mast features simple structure and convenient site installation. It can be designed as self-supported or cable-guyed types to fit different site conditions. All steel components adopt bolted connections for easy transportation and quick erection. All steel parts are hot‑dip galvanized for long‑term anti-corrosion performance in outdoor environments. Custom design is available according to site wind load, seismic requirement and antenna payload.
It is widely used for suburban cellular coverage, microwave communication links, small cell sites and other wireless communication infrastructure projects.
To receive an accurate quotation, please provide mast height, design wind speed, antenna payload and site conditions. Drawings or reference designs help confirm structural layout before production.
Submit mast specifications, drawings and quantity to obtain our fabrication proposal. Material certificates and past project references can be supplied upon request
Item
Specification
Design Software
MS TOWER, ASM TOWER, PLS TOWER, SAP2000, etc.
Wind Speed
0–330 KM/H
Design Standard
TIA/EIA-222-G/F/H
Material
GB/T700: Q235B
GB/T1591: Q355B, Q355C, Q355D, Q420
ASTM A36, ASTM 572, GR50, GR65, SS400
EN 10025: S235JR, S235JO, S235JZ
EN 10025: S355JR, S355JO, S355JZ
Certificate
ISO9001, SGS COC
Galvanized
Hot-dipped Galvanized
Galvanization Standard
ASTM A123
Nuts & Bolts
Grade 8.8，ASTM A325M Type1 (830MPa)
Welding Standard
AWS D1.1
Welding Method
CO₂ Shielded Arc Welding; Submerged Arc Welding (SAW)
Bolts & Nuts Galvanization Standard
ISO 1461 or ASTM A153
Supply Ability
5,000 MT per month
