Lightning Tower Overview

A lightning tower is a tall, grounded steel structure designed to intercept lightning strikes and safely route the surge to earth, protecting people, buildings, equipment, and open areas beneath and around it. Hengshui Yuanming Steel Structure Co., Ltd. fabricates lightning towers as engineered steel structures, typically configured as free-standing lattice towers, monopole towers, or guyed masts depending on site conditions, height requirements, and the protected zone to be covered.

What a Lightning Tower Covers

The purpose of a lightning tower is to create a preferred strike point above the asset or area being protected. When lightning terminates on the tower, the current is conducted through a defined down-conductor path to a grounding system instead of passing through the protected structure. Typical configurations include:

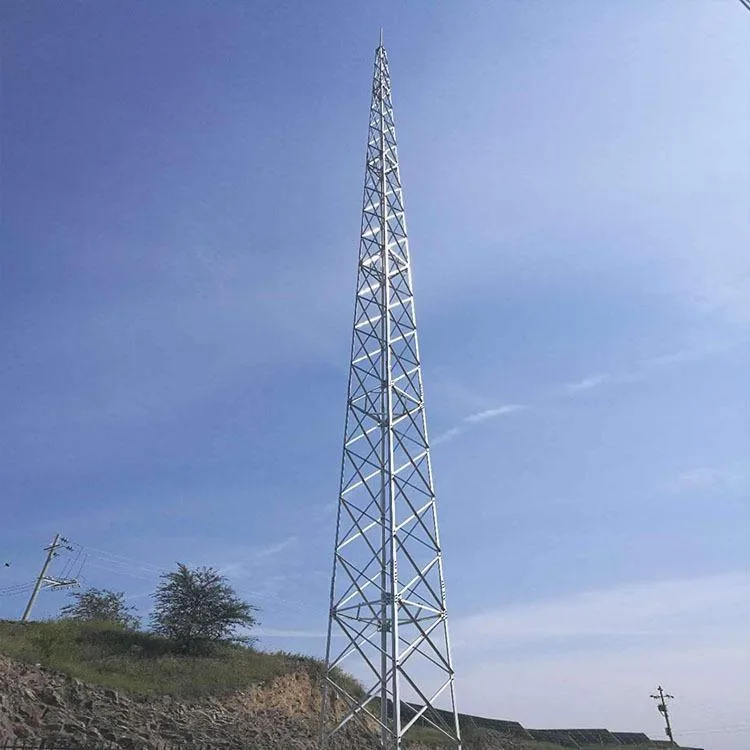

• Lattice steel towers — four-leg or three-leg structures for taller installations and larger protection radii.
• Monopole towers — single-shaft towers for sites where a smaller footprint or cleaner appearance is preferred.
• Guyed masts — cable-stayed masts for cost-effective height where anchor space is available.
• Air terminals and down-conductors — strike-termination hardware and conductive paths integrated with the tower structure.
• Grounding interfaces — provisions for connecting the tower to site earthing electrodes and grounding grids.

Where Lightning Towers Are Used

Lightning towers are specified across many sectors where tall structures, critical equipment, or open areas require protection:

• Electrical substations and switchyards
• Telecommunications sites and radio installations
• Industrial plants, refineries, and tank farms
• Solar farms and renewable energy facilities
• Airports, ports, and logistics yards
• Mining sites, quarries, and remote infrastructure
• Government, campus, and public safety facilities

Key Design and Fabrication Strengths

As a steel structure fabricator, Hengshui Yuanming Steel Structure Co., Ltd. approaches lightning towers as engineered products rather than generic poles. Key considerations built into each project include:

• Structural analysis — wind load, ice load, seismic, and self-weight checks appropriate to the project location.
• Material selection — structural steel sections and plates selected for strength, weldability, and site conditions.
• Connection design — bolted and welded connections detailed for fabrication, transport, and site erection.
• Corrosion protection — hot-dip galvanizing or coating systems suited to the environment and service life.
• Grounding coordination — tower base and down-conductor details coordinated with the electrical protection design.
• Transport and erection planning — section lengths and splice locations arranged for practical shipping and lifting.

Buyer Notes

When requesting a lightning tower quotation, the following information helps produce an accurate and buildable design:

• Required tower height and preferred type (lattice, monopole, or guyed).
• Protected area or equipment to be covered, and any required protection radius.
• Site location, terrain category, and design wind speed.
• Applicable design codes and local permitting requirements.
• Grounding and lightning protection standards to be followed.
• Finish requirements, such as hot-dip galvanizing or paint system.
• Delivery destination and site access constraints.

Because lightning protection performance depends on the complete system — air termination, down-conductor, grounding, and surge protection — the tower should be specified together with the electrical protection design. Hengshui Yuanming Steel Structure Co., Ltd. can fabricate the steel structure to the dimensions, loads, and connection details provided by the project engineer.

How to Inquire

To discuss a lightning tower project, contact Hengshui Yuanming Steel Structure Co., Ltd. with your height, site, and protection requirements:

• Address: Guangchuan Industrial Zone, Jing County, Hengshui City, Hebei Province, China
• Tel: +86 13315862903
• WhatsApp: +86 13315862903
• Email: yuanming@steeltowerfab.com

Providing drawings, design loads, and site conditions with your inquiry helps speed up review and quotation.
